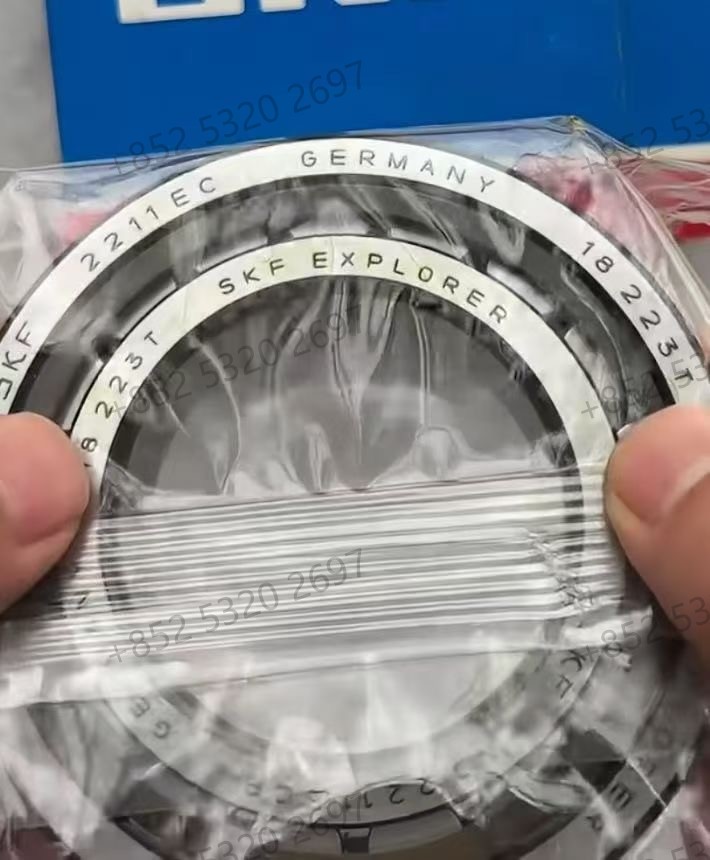

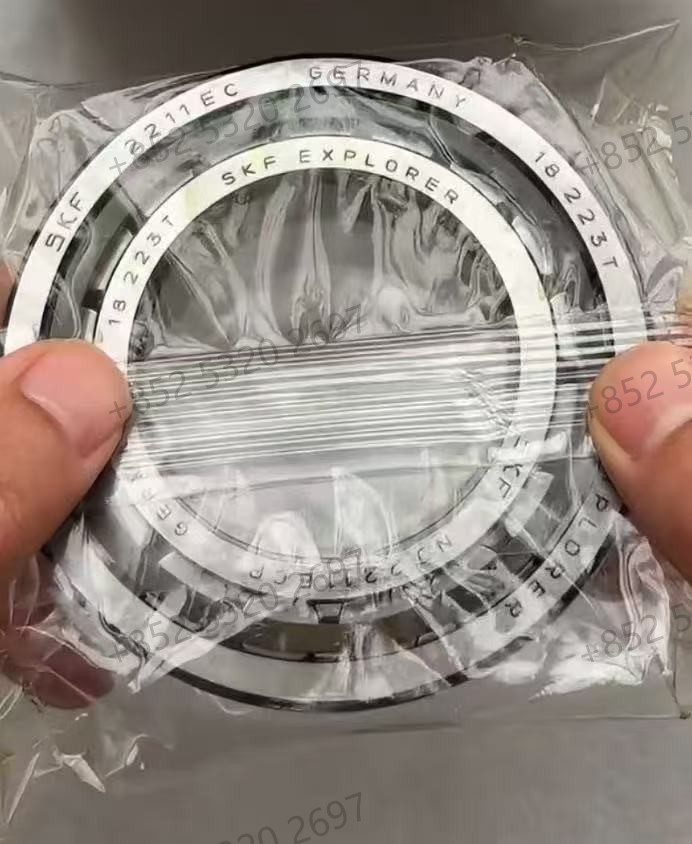

2211 EC Self-Aligning Ball Bearing: In-Depth Overview
Note on Nomenclature: In the context of self-aligning ball bearings, the suffix "EC" is an uncommon designation. The most frequent variants matching the precise dimensions of 55x100x25mm are the 2211 EK (featuring a tapered bore) or the 2211 ETN9 series. The comprehensive technical information provided below is based on this widely adopted structural type. When handling the 2211 series, operators immediately notice the dense, solid weight of the premium forged bearing steel and the cool, polished finish of the outer rings. Rotating the inner ring by hand reveals a smooth, frictionless glide, a direct result of the precision machining applied to the spherical raceway.
Product Overview: Core Function & Principle
The 2211 series self-aligning ball bearing is engineered with a continuous spherical outer ring raceway and two independent rows of balls. This specific internal geometry allows the bearing to automatically compensate for complex mechanical alignment issues. Manufactured to strict P0/ABEC-1 high-precision tolerance standards, the premium bearing steel construction ensures reliable, continuous operation even in demanding industrial environments.
Even when the shaft is slightly bent or the initial installation lacks perfect alignment, the bearing's internal components pivot naturally, preventing localized stress concentration on the raceways. The permissible angular misalignment is approximately 3 degrees, providing substantial tolerance and mechanical forgiveness during both initial setup and long-term operation.
Key Advantages
This bearing series delivers consistent mechanical benefits for complex rotational systems, particularly excelling in harsh environments where standard rigid bearings would experience premature wear. The sealed variants offer the distinct advantage of lifetime maintenance-free lubrication.
Advantage | Description |
|---|
Self-Aligning Capability | Mechanically compensates for up to 3° of angular misalignment and dynamic shaft bending without binding. |
Low Friction & Temperature Rise | Optimized internal design minimizes friction and heat generation, even under misaligned conditions, extending the overall bearing life. |
Broad Temperature Tolerance | Engineered to maintain stable operation across a wide temperature range from -30°C to +100°C, ensuring reliability in extreme climates. |
High Load Capacity | Operating as a double-row ball bearing, it efficiently handles high radial loads alongside bidirectional axial loads. |
Stable Operation | Performs exceptionally well under constant vibration and fluctuating operational loads without structural degradation. |
Easy Maintenance | Many variants (especially the "EK" tapered bore) feature relubrication grooves and utilize adapter sleeves for straightforward mounting and dismounting procedures. |
Detailed Technical Specifications
Based on the engineering standards of leading manufacturers, the following typical values apply. For professionals requiring rigorous equipment reliability assessments, we provide advanced calculation factors alongside standard dimensions.
Parameter | Value |
|---|
Bore diameter (d) | 55 mm |
Outer diameter (D) | 100 mm |
Width (B) | 25 mm |
Dynamic load rating (C) | ≈ 39 kN |
Static load rating (C₀) | ≈ 13.4 kN |
Fatigue load limit (Pᵤ) | ≈ 6 kN |
Limiting speed (grease) | ≈ 6,000 r/min |
Limiting speed (oil) | ≈ 7,000 r/min |
Calculation factor (e) | 0.22 |
Calculation factor (Y1) | 2.8 |
Calculation factor (Y2) | 4.4 |
Calculation factor (Y0) | 2.8 |
Reference weight | ≈ 0.79 kg (varies by brand) |
Note: Slight variations may exist between brands. Always verify with manufacturer datasheets.
Engineering & Logistics Data
To seamlessly integrate this component into equipment research and development, comprehensive 2D and 3D CAD models, alongside detailed PDF product specifications, are available for download. For procurement and supply chain planning, the standard HS Code is 8482.10, and the UNSPSC code is 31171504. Standard lead times typically range from 7 to 14 days, facilitating accurate logistics cost accounting and project scheduling.
Common Suffix Codes
Understanding specific suffixes ensures the correct selection for your mechanical environment. The tactile difference between a standard steel cage and a glass-fiber reinforced polyamide cage (TN9) is notable, with the latter offering a lighter, highly resilient structure.
EK or K: Tapered bore (1:12 taper). Used specifically with an adapter sleeve (e.g., H311) for easy and secure mounting on smooth shafts.
TN9: Nylon (polyamide) cage – delivers high tensile strength, excellent wear resistance, and quieter operation.
-2RS: Rubber seals on both sides – provides a dust-proof barrier and retains grease effectively for the life of the bearing.
C3: Radial internal clearance greater than normal – essential for high-speed applications or environments with significant temperature fluctuations.
-2RS1 : Contact seals on both sides, ensuring maximum protection against fine particulate ingress.
Main Application Fields
Thanks to its self-aligning geometry and combined load-carrying capabilities, the 2211 bearing is widely deployed across multiple heavy-duty sectors:
Industry | Specific Equipment & Function |
|---|
Construction & Mining | Vibrating screens and crushers – effectively handles severe shock, heavy vibration, and abrasive dust. |
Fans & Pumps | Compensates for inevitable shaft deflection arising from long shafts or rapid temperature changes during fluid transfer. |
Agriculture | Power transmission systems operating continuously in harsh, muddy, and highly dusty environments. |
Industrial Machinery | Textile machinery, paper manufacturing machinery, and long-span conveyors requiring support for extended shafts. |
Power & Metallurgy | Heavy-duty cranes and metallurgical processing equipment subjected to extreme loads. |
Mixers & Agitators | Compensates for unpredictable load fluctuations and shaft bending during the mixing of dense materials. |
Installation & Maintenance Guide
Proper installation is critical to achieving the calculated fatigue load limit and preventing premature failure. We explicitly recommend pairing tapered bore variants with perfectly matched adapter sleeves (such as the H311 series) or withdrawal sleeves to eliminate selection errors and ensure a secure, concentric fit. You will feel a distinct resistance and lock when the sleeve is correctly tensioned.
Mounting Methods
Bore Type | Method |
|---|
Cylindrical bore | Cold pressing (utilizing proper mechanical tools to apply even pressure) or heat mounting (heating the bearing evenly to 80–100°C, then sliding it smoothly onto the shaft). |
Tapered bore (EK/K) | Use an H311 adapter sleeve or a withdrawal sleeve on a smooth shaft. Tighten the lock nut mechanically to fix the bearing in place and precisely adjust the radial internal clearance. |
Dismounting Methods
Puller tools: For separable outer rings, utilize a standard jaw puller or a specialized blind-hole puller kit to apply steady extraction force.
Hydraulic method: For large or exceptionally tight interference-fit tapered bore bearings, deploying a hydraulic nut provides a controlled, damage-free removal process.
❓ Frequently Asked Questions (FAQ)
Q: Is "2211 EC" exactly the same as "2211 EK"?
A: No, not exactly. In the specific category of self-aligning ball bearings, "EK" indicates a tapered bore with a 1:12 taper ratio. The "EC" suffix is actually more commonly found on cylindrical roller bearings to denote an optimized internal design. If you are actively looking for a self-aligning ball bearing with the dimensions 55x100x25mm, the correct and standard industrial code is typically 2211 EK (or 2211 ETN9 for the polyamide cage variant).
Q: What is the maximum permissible misalignment for this unit?
A: The internal geometry allows for approximately 3 degrees of angular misalignment. Exceeding this 3-degree threshold restricts the free movement of the balls within the spherical raceway, leading to stress concentration, elevated temperatures, and ultimately premature mechanical failure.
Q: Under what conditions should I choose a C3 clearance bearing?
A: You should specify a C3 clearance if your application involves high rotational speeds, large temperature variations (such as operating outdoors in extreme climates), or heavy interference fits during mounting (which naturally reduce the internal clearance). The C3 designation provides the necessary extra internal space for thermal expansion, preventing the rolling elements from seizing.
Summary & Selection Guide
The 2211 self-aligning ball bearing (frequently carrying the EK/TN9 suffixes) stands as the ideal mechanical choice when your system must tolerate up to 3° of misalignment or dynamic shaft deflection while supporting both radial and bidirectional axial loads. It is specifically designed for applications where low friction, cool operation, and easy mounting/dismounting via standardized adapter sleeves are operational priorities.
Quick Selection Checklist
Confirm bore type: Do you require a Cylindrical bore for press fits, or a tapered bore (EK/K) for use with an H311 adapter sleeve?
Choose sealing: Will the environment require an Open design for oil bath lubrication, or -2RS (rubber seals) for lifetime grease retention?
Select clearance: Is Normal clearance sufficient, or do operating temperatures and high speeds dictate a C3 clearance?
Pick cage material: Does the application favor standard Steel, brass, or the lightweight, durable nylon (TN9)?
Define brand: Are you specifying a Premium tier or evaluating a fully interchangeable, cost-effective alternative for your equipment?
