How to Choose the Right Nylon Ball Bearing Size for Your Needs

Polymer bearings offer distinct advantages in weight reduction, corrosion resistance, and noise dampening. Selecting the correct size requires calculating specific variables that do not apply to traditional steel bearings. A miscalculated bearing size leads to premature wear, catastrophic mechanical failure, or excessive friction. Because nylon behaves differently under thermal and mechanical stress compared to metal, standard 1:1 size replacements often fail without proper engineering evaluation.

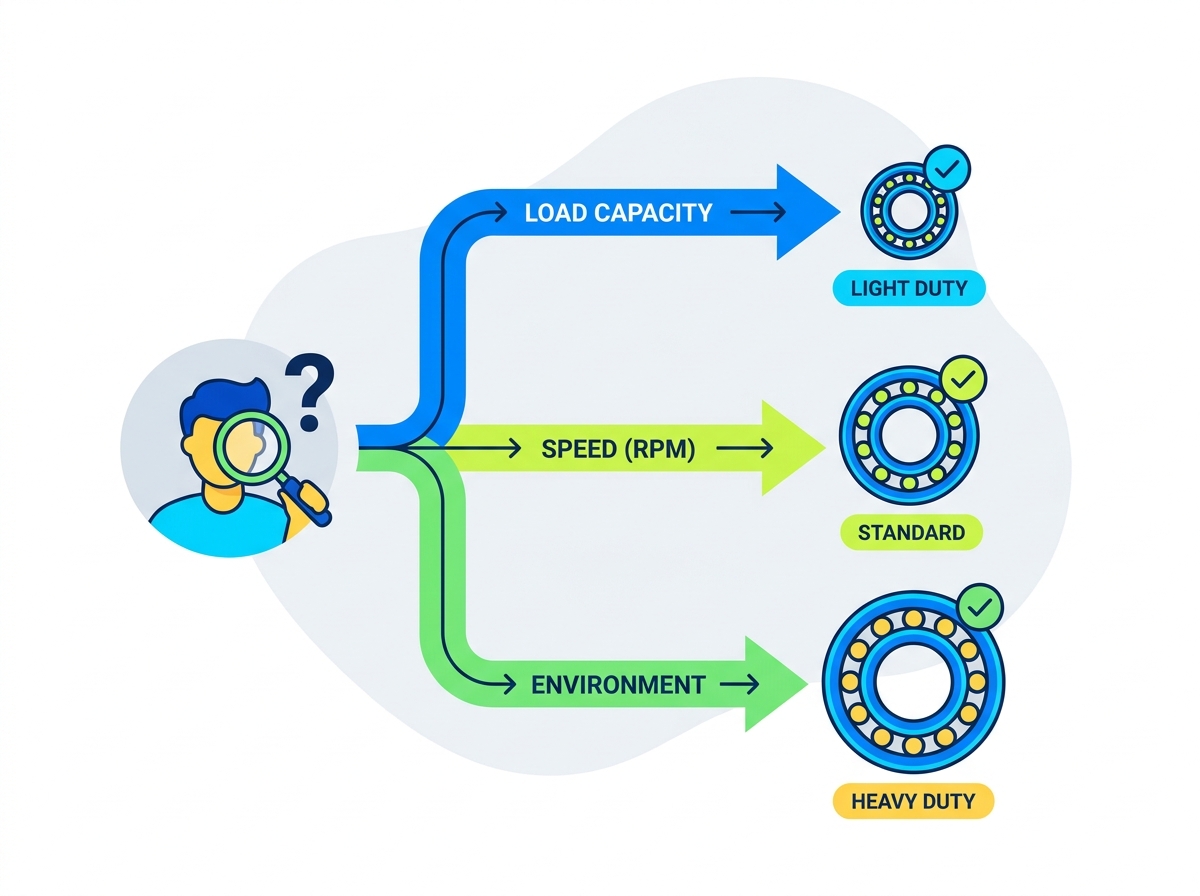

Understanding the material science behind polymer components is the foundation of reliable mechanical design. When you transition from metal to plastic, the dimensional stability changes based on the operating environment. This guide outlines the technical framework required to evaluate load capacities, speed limits, environmental variables, and dimensional tolerances to specify the exact size for your operational requirements.

Key Takeaways

• Dimensional Stability Requires Calculation: Nylon absorbs moisture and expands under heat; internal clearances and housing fits must account for these environmental shifts.
• Load Dictates Volume: Polymer bearings have lower dynamic and static load capacities than steel; applications may require sizing up the outer diameter or width to achieve necessary load ratings.
• Speed Limits Scale Inversely with Size: Larger nylon bearings generate more friction and heat, lowering the maximum allowable RPM compared to smaller counterparts.
• Tolerance is Application-Specific: Press-fit tolerances for nylon require specific shaft and housing engineering to prevent race cracking or bearing seizure.

Why Sizing a Nylon Ball Bearing is Fundamentally Different from Steel

Mechanical success depends on understanding polymer material science, not just matching physical dimensions from a catalog. When engineers specify a metal bearing, they rely on rigid dimensions that remain relatively stable across a wide range of operating conditions. Polymer materials introduce dynamic variables. The physical size of a polymer component changes based on temperature, moisture, and applied load. Failing to account for these shifts results in seized shafts or cracked raceways.

Thermal Expansion Coefficients

Nylon expands at a significantly higher rate than steel. The coefficient of linear thermal expansion for standard nylon can be up to ten times greater than that of carbon steel. As the operating temperature rises, the polymer material grows. If the bearing is housed in a rigid metal enclosure, the outer ring cannot expand outward. Instead, the material expands inward, reducing the internal radial clearance. Standard sizing charts must be adjusted for operating temperatures to prevent the balls from binding against the raceways once the system reaches its maximum thermal output. We often see field failures where maintenance teams ignore this expansion rate, resulting in melted cages.

Hygroscopy (Moisture Absorption)

Standard nylon is hygroscopic, meaning it absorbs water from its surrounding environment. This moisture absorption causes dimensional swelling. In washdown environments, marine applications, or high-humidity facilities, a polymer bearing will physically increase in size. This swelling affects both the bore and the outer diameter. If a tight clearance fit was specified for a dry environment, introducing water will cause the bore to shrink against the shaft and the outer diameter to press harder against the housing, leading to catastrophic friction. You must calculate the saturation point of the specific nylon blend.

Material Variations

Not all polymers behave identically under stress. Standard nylon (PA66) offers excellent wear resistance but is highly susceptible to moisture swelling. Glass-fiber reinforced nylon introduces structural rigidity, reducing the rate of thermal expansion and improving dimensional stability under heavy loads. Acetal (POM) hybrids absorb significantly less moisture than PA66, allowing for tighter sizing tolerances in wet environments. Selecting the specific polymer blend dictates how much dimensional compensation is required during the sizing phase.

Core Dimensions: How to Measure and Specify Size

Establishing the correct physical dimensions requires a universal measurement framework adapted specifically for polymer materials. You must evaluate the inner diameter, outer diameter, width, and internal clearance simultaneously to ensure proper fitment. Missing even one of these parameters guarantees a poor fit.

Inner Diameter (Bore Size)

The bore size must match the shaft diameter while accounting for the required fit. Evaluating clearance fits versus interference fits for nylon requires precision. An interference fit (press fit) on the shaft will cause the inner ring of the polymer bearing to expand outward. If the interference is too aggressive, it will consume the internal radial clearance. For high-temperature applications, a slightly looser clearance fit is often specified to allow the shaft to expand without fracturing the polymer inner ring. We typically recommend a transition fit for most standard industrial applications.

Outer Diameter (OD)

Determining the correct outer diameter depends heavily on the housing material. You must account for differential expansion between the housing and the polymer. If you press a polymer bearing into an aluminum housing, both materials will expand at elevated temperatures, but at different rates. If pressed into a steel housing, the steel remains rigid while the polymer expands. The OD specification must include a tolerance calculation that prevents the bearing from spinning in the housing when cold, while avoiding severe compression when hot.

Width (Thickness)

Bearing width directly impacts load distribution across the polymer race. A wider bearing provides a larger contact area for the balls, distributing mechanical stress more evenly. In applications where radial loads are near the material's maximum limit, increasing the width helps prevent localized deformation of the raceway. Standard widths often need to be increased by 10-15% when converting from steel to nylon in high-load scenarios.

Internal Radial Clearance

Internal radial clearance defines the gap between the balls and the raceways when the bearing is unmounted. Polymer bearings typically require larger initial internal clearances than metal bearings. This extra space compensates for the inward expansion of the outer ring and the outward expansion of the inner ring caused by press fits, thermal expansion, and moisture absorption. Specifying a C3 or C4 equivalent clearance is standard practice for polymer components in fluctuating environments.

How to Identify Required Size Without Disassembly

When the existing bearing cannot be immediately removed from the machinery, you must determine the sizing by measuring the surrounding components. Field measurements require precision tools and a clear understanding of the mating surfaces.

1. Measure the exposed shaft spindle or journal directly using precision calipers to establish the baseline bore requirement.
2. Measure the internal bore of the housing to determine the maximum allowable outer diameter.
3. Evaluate the available axial space on the shaft to determine the maximum allowable bearing width.
4. Decipher industry-standard bearing part numbers (such as 6000 or 6200 series) stamped on adjacent equipment to find corresponding baseline dimensions, then apply polymer-specific tolerance adjustments.

Evaluating Load Capacity vs. Bearing Size

Aligning physical size with mechanical stress requirements is the most critical step in specifying a Nylon Ball Bearing. Polymers inherently possess lower tensile and compressive strength than steel. Therefore, handling heavy loads requires specific geometric compensations. You cannot simply drop a plastic bearing into a high-load steel application and expect it to survive.

Radial vs. Axial (Thrust) Loads

The direction of the load dictates the required ball size and raceway depth. Radial loads run perpendicular to the shaft, while axial (thrust) loads run parallel to the shaft. Polymer materials handle radial loads reasonably well but have strict limitations regarding heavy axial loads. Excessive axial force pushes the balls against the shallow shoulder of the polymer raceway, causing material fatigue and eventual blowout. If high axial loads are present, the bearing size must be increased to provide deeper raceways and larger ball diameters to distribute the thrust force.

Sizing for Combined Loads (Radial + Axial Stress)

Complex, multi-directional forces necessitate scaling up the outer ring thickness. When a bearing faces combined loads, the stress concentrates on specific points along the polymer track. Choosing larger ball diameters and increasing the cross-sectional thickness of the rings prevents track deformation. A bearing sized purely for radial load will quickly deform if subjected to unexpected axial forces during operation. We always calculate the equivalent dynamic bearing load before finalizing the dimensions.

Static vs. Dynamic Load Ratings

Understanding the difference between stationary and rotating stress limits is mandatory. Static load refers to the maximum force applied when the bearing is stationary. Exceeding this limit causes permanent indentation (brinelling) in the polymer raceway. Dynamic load refers to the stress applied during rotation. Increasing the bearing size exponentially increases load capacity. A small increase in outer diameter allows for significantly larger balls, which drastically improves both static and dynamic load ratings.

The Sizing Trade-off

Engineers frequently encounter scenarios where a steel bearing's size is too small to support the same load when converted to nylon. A direct dimensional swap will result in immediate failure due to overloading. In these cases, a redesign of the housing is required to accommodate a larger polymer bearing. You must trade compact design for increased material volume to achieve the necessary mechanical strength. Sometimes this means machining a larger housing bore or stepping up the shaft diameter.

Speed Requirements (RPM) and Size Limitations

Balancing the need for size against the constraints of rotational speed requires careful calculation. As bearings get larger, their speed capabilities decrease due to the physics of rotational motion and friction. You cannot run a massive polymer bearing at high speeds without severe consequences.

The Friction and Heat Equation

As bearing diameter increases, the surface speed of the balls traveling along the raceway increases, even if the shaft RPM remains constant. Higher surface speeds generate more friction. Friction generates heat. Because polymers are thermal insulators, they do not dissipate heat effectively. The heat remains trapped within the bearing, softening the material and leading to rapid degradation. We monitor operating temperatures closely during initial run-in periods to verify our sizing calculations.

Thermal Limits of Nylon

Standard nylon has a maximum continuous operating temperature limit. Oversized bearings running at high RPMs can easily exceed these limits. When the material surpasses its glass transition temperature, it loses its structural integrity. The raceways deform, the internal clearance vanishes, and the bearing melts onto the shaft. You must verify that the selected size will not generate frictional heat exceeding the material's thermal threshold at the target RPM.

The Impact of Seals, Shields, and Lubrication on Sizing Decisions

The components used to protect the bearing also impact its speed limits and size requirements. You must factor these into your final dimensional choices.

• Contact seals (rubber lips) physically rub against the inner ring, generating additional frictional drag. This lowers the maximum allowable speed for a given size due to increased heat generation.
• Non-contact shields (metal or polymer) leave a microscopic gap, eliminating drag and allowing for higher RPMs, but providing less protection against liquid ingress.
• Dry-running nylon utilizes self-lubricating properties, but at high velocities, the size must accommodate specialized grease or oil lubrication to prevent the polymer from burning.

Calculating Max RPM by Size

Manufacturer RPM limits are strictly tied to specific bore and OD dimensions. The standard formula involves calculating the bearing's mean diameter (Bore + OD / 2) and multiplying it by the RPM to find the NDm value. Manufacturers provide maximum NDm values for their specific polymer blends. If your calculated NDm exceeds the manufacturer's limit, you must either reduce the shaft speed or decrease the bearing size. There is no workaround for exceeding the NDm limit.

Environmental Factors Influencing Size Selection

Factoring in the operating environment is the final step to finalize dimensional specifications. The surrounding conditions will physically alter the bearing once it is installed and running. Ignoring the environment is the fastest way to destroy a polymer bearing.

Temperature Extremes

High-heat environments require sizing adjustments to accommodate thermal expansion. You must specify looser initial fits and larger internal clearances to ensure the bearing operates smoothly at peak temperatures. Conversely, freezing environments cause nylon to become brittle and shrink. In sub-zero applications, the bore will tighten around the shaft. You must calculate the shrinkage rate to prevent the bearing from fracturing under cold-start conditions.

Chemical and Washdown Exposure

Exposure to harsh chemicals or continuous water immersion necessitates sizing up clearances. Standard PA66 nylon swells significantly when exposed to moisture. If the application involves daily high-pressure washdowns, the bearing volume will increase. You must specify a larger internal clearance to account for this material swelling, or switch to a less hygroscopic material like POM to maintain tighter tolerances.

Debris and Particulate Matter

Operating in dusty or abrasive environments requires choosing sizes that accommodate specific sealing mechanisms. If heavy debris is present, contact seals are mandatory. You must ensure the chosen bearing size has sufficient width to house robust sealing elements without compromising the thickness and integrity of the polymer raceway. Abrasive dust will quickly destroy an unsealed polymer bearing, regardless of its size.

Common Sizing Mistakes and Implementation Risks

Highlighting critical failure points in the decision and installation phase prevents costly downtime and mechanical damage. We see the same errors repeated across various industries.

Direct 1:1 Steel Replacement

The most common and destructive mistake is dropping a polymer bearing into a tight-tolerance steel housing designed for a metal bearing. Steel housings are machined to exact interference fits. When operational heat is applied, the polymer expands but has nowhere to go. It expands inward, crushing the balls against the raceway, resulting in immediate seizure. Always recalculate the housing fit.

Improper Press-Fit Tolerances

Over-compressing the outer diameter during installation crushes the internal clearance. Installers often use hydraulic presses with too much force, distorting the polymer outer ring. This leads to uneven load distribution and premature failure. Adhering strictly to polymer-specific press-fit guidelines is non-negotiable. The housing bore must be machined to accommodate the polymer's specific expansion rate.

Ignoring Shaft Material

Sizing a bearing perfectly is useless if paired with the wrong shaft material. Polymer bearings can be abrasive to soft shafts like unanodized aluminum or 303 stainless steel. Over time, the bearing will wear down the shaft, effectively changing the bore fit from a tight tolerance to a sloppy clearance. This introduces vibration and runout into the system. Always verify shaft hardness compatibility during the sizing process.

Conclusion

1. Calculate the maximum dynamic load and rotational speed of your application to determine the minimum required material volume.
2. Measure the exact operating temperature range and adjust the internal radial clearance to compensate for thermal expansion or shrinkage.
3. Evaluate the environment for moisture or chemical exposure to account for hygroscopic swelling in the final bore and OD specifications.
4. Consult manufacturer engineering data sheets to verify the specific thermal expansion coefficients for the exact polymer blend you intend to use.
5. Request material samples for environmental testing before committing to a bulk installation in critical machinery.

FAQ

Q: Can a nylon ball bearing directly replace a steel bearing of the exact same size?

A: Rarely. While physical dimensions may match, load capacity and thermal expansion differ drastically. Nylon has lower load limits and expands significantly more under heat. A direct 1:1 swap without engineering review usually results in bearing seizure or structural failure due to uncompensated thermal expansion.

Q: How do you measure a nylon ball bearing correctly?

A: Use precision digital calipers to measure the Bore (inner diameter), OD (outer diameter), and Width. Apply light pressure. Because polymer is softer than steel, squeezing the calipers too tightly will compress the material, resulting in inaccurate, undersized readings.

Q: How do I find my nylon ball bearing size if the part number is worn off?

A: Use precise calipers to measure the mating shaft diameter and the internal housing bore. Measure the available width on the shaft. Once you have these three dimensions, reference standard metric or inch bearing size charts to find the closest matching baseline series.

Q: Do nylon bearings expand with heat?

A: Yes, nylon has a high thermal expansion rate, often expanding up to ten times more than steel. This requires specifying larger internal radial clearances and looser housing fits to prevent the bearing from binding as the temperature increases during operation.

Q: How does moisture affect nylon bearing dimensions?

A: Standard PA66 nylon is hygroscopic, meaning it absorbs water. This moisture absorption increases the physical volume of the bearing, causing the material to swell. In wet environments, this swelling reduces internal clearances and can cause the bearing to seize on the shaft.

Q: Do nylon ball bearings require lubrication, and does size affect this?

A: Nylon possesses self-lubricating properties suitable for dry runs at lower speeds and lighter loads. However, larger sizes and higher RPMs generate excessive frictional heat. In these demanding applications, specialized greases or oils are required to dissipate heat and prevent the polymer from melting.

Q: What size bearing do I need for light-duty applications?

A: Even if load requirements are minimal, the size is strictly dictated by the physical shaft diameter, housing bore, and operational RPM. You must select a size that fits the mechanical constraints while ensuring the rotational speed does not exceed the thermal limits of that specific diameter.
