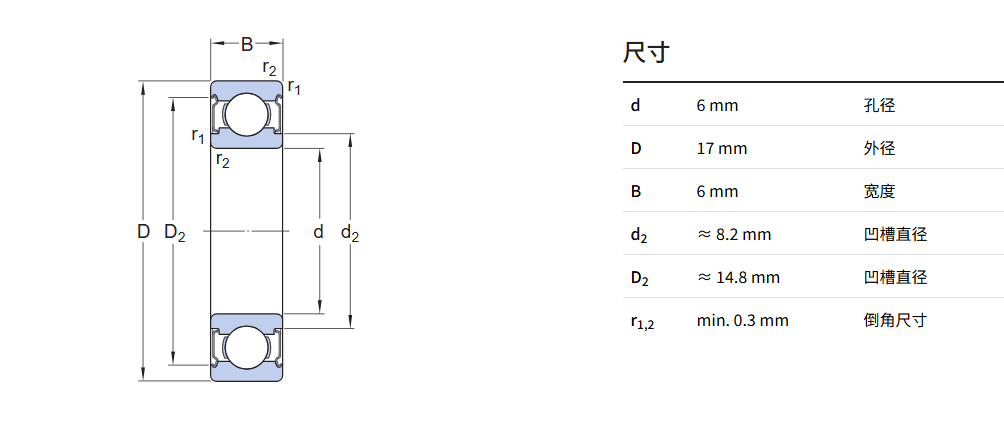

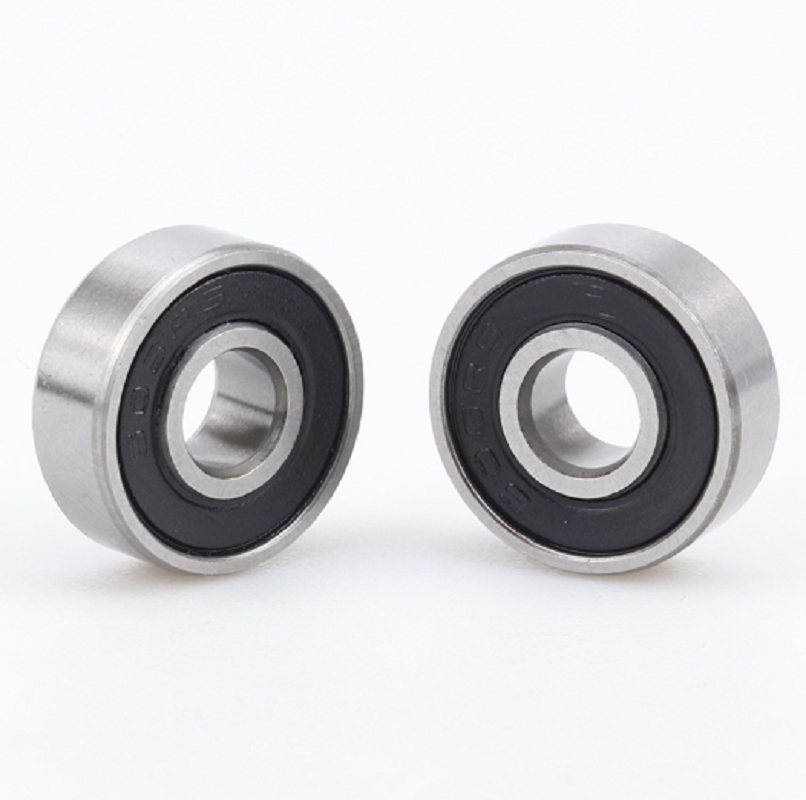

606 Deep Groove Ball Bearing Miniature Bearing 6x17x6mm High Speed Low Noise for Small Motors & Household Appliances

The 606 series deep groove ball bearing (6×17×6mm) is a high-precision miniature component designed for low-to-medium speed, light-load applications. It excels in scenarios requiring stable rotation, low noise and compact installation.

Core Application Scenarios

1. Small Motors & Fans

   Ideal for micro motors, cooling fans, gear motors and small precision motor sets. Its compact size fits perfectly in limited motor spaces.

2. Household Appliances

   Widely used in small home appliances such as electric fans, coffee makers, massagers, hair dryers and small automatic cleaning devices.

3. RC Hobby Models (Key Use)

   Perfect for RC aircraft, RC cars, drones and remote control model accessories. It ensures high stability and durability during continuous operation.

4. Office Equipment

   Applied in printers, copiers, scanners, shredders and small office automation devices requiring smooth transmission.

5. Textile & Medical Instruments

   Used in textile machinery parts, micro medical equipment, precision instruments and transmission parts of various smart home gadgets.

Installation Requirements

1. Cleaning & Preparation: Thoroughly clean the bearing seat, shaft and mating parts before installation, and ensure no dust, burrs or impurities remain to avoid wear and noise.

2. Mounting Method: Use a special press tool for press-fit installation, apply uniform force to the bearing inner ring (for shaft mounting) or outer ring (for housing mounting), and never strike the bearing directly with a hammer to prevent damage to the raceway and balls.

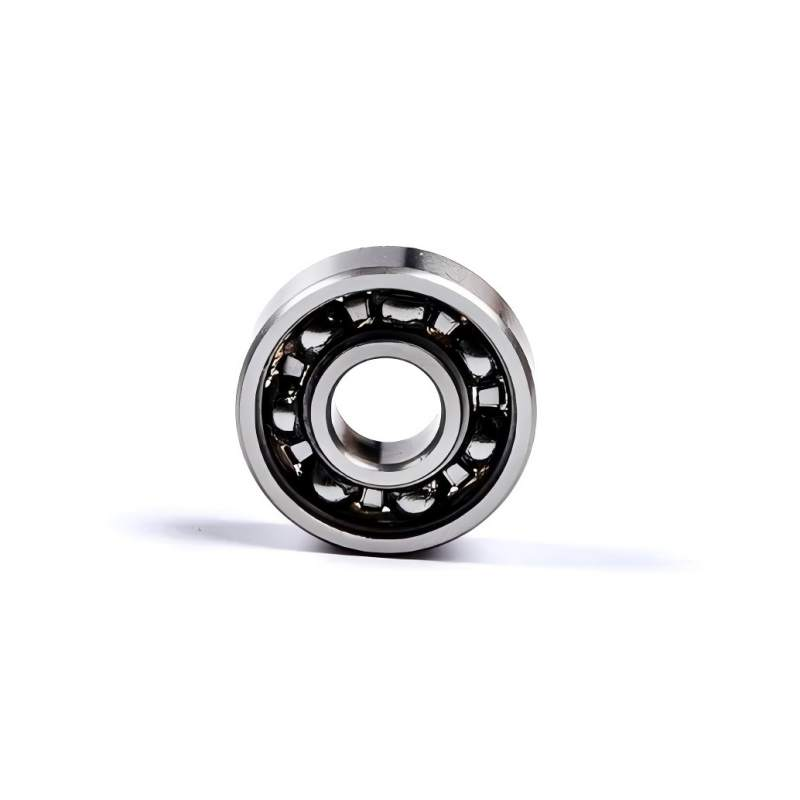

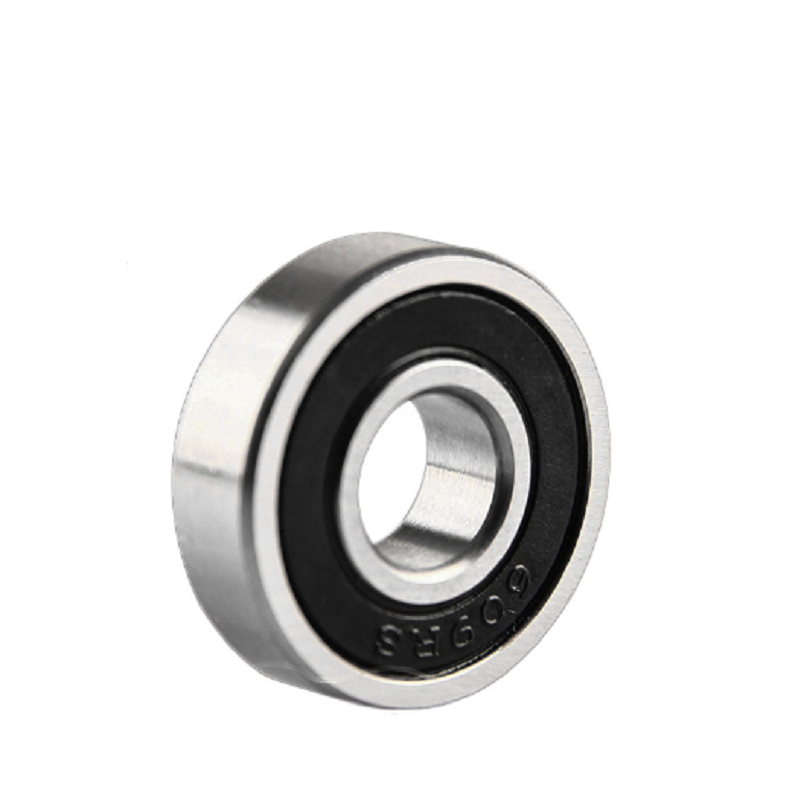

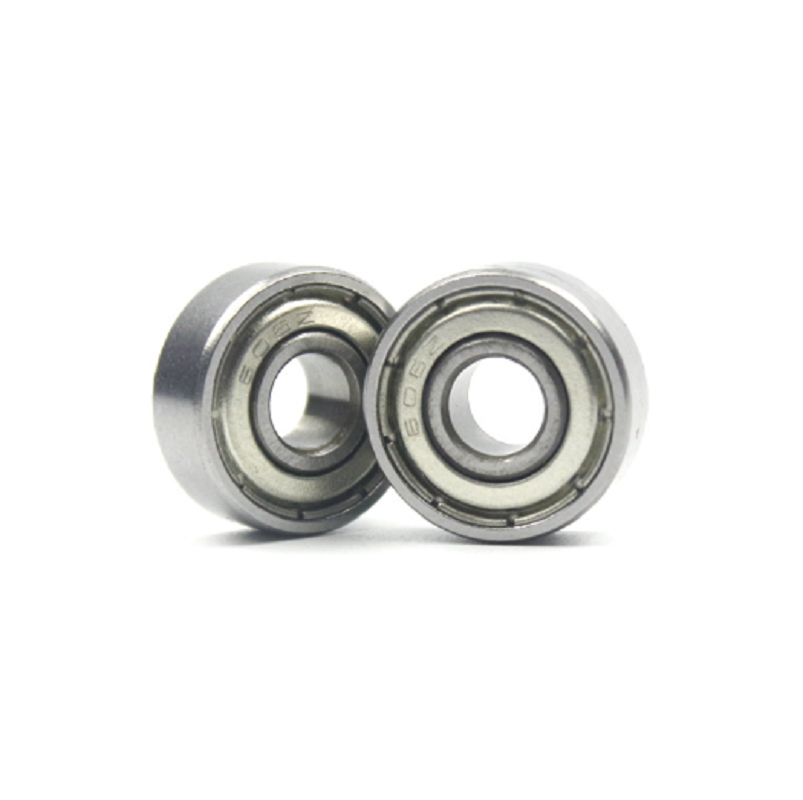

3. Lubrication: For pre-lubricated sealed bearings (606-2RS/606-2Z), no additional lubrication is required during installation. For open-type bearings, fill with appropriate lithium-based grease before installation, and control the filling amount to avoid excessive grease causing overheating.

4. Alignment & Clearance: Ensure the shaft and bearing seat are coaxial, avoid misalignment and eccentric load, and check the radial/axial clearance after installation to ensure smooth rotation without jamming.

Maintenance Requirements

1. Regular Inspection: Periodically check the bearing's running status, including noise, temperature and vibration. If abnormal noise, overheating or jamming occurs, stop the machine immediately for inspection.

2. Lubrication Maintenance: For open-type bearings, replenish grease regularly according to the operating environment and speed. Sealed bearings are maintenance-free under normal working conditions, but avoid long-term operation in high-temperature, high-humidity or dusty environments.

3. Storage Requirements: Store unused bearings in a dry, cool, dust-free environment, keep them in the original packaging, and avoid stacking and impact to prevent deformation and rust.

4. Replacement Standard: Replace the bearing in time when there is obvious wear, pitting on the raceway, cage damage or excessive clearance, to avoid equipment failure.

Common Failure Modes & Causes

1. Fatigue Spalling / Pitting

• Manifestation: Flaking or pitting on the raceway and rolling elements, accompanied by increased noise and vibration.

• Causes: Long-term overload operation, excessive axial/radial load, poor lubrication, or material fatigue from prolonged high-speed rotation.

2. Abrasive Wear / Scuffing

• Manifestation: Scratches, grooves or material loss on the raceway, leading to increased clearance and running noise.

• Causes: Ingress of dust, sand or metal impurities into the bearing, insufficient lubrication, or misalignment during installation.

3. Rust & Corrosion

• Manifestation: Red/brown rust spots on the bearing surface, resulting in jamming and reduced rotation accuracy.

• Causes: Exposure to humid, corrosive environments, water/moisture ingress, improper storage, or use of incompatible lubricants.

4. Cage Damage / Breakage

• Manifestation: Cage deformation, fracture or falling off, causing the bearing to jam and fail completely.

• Causes: Excessive impact load, improper installation (direct hammering), high-speed operation beyond limit, or severe misalignment.

5. Overheating & Seizure

• Manifestation: Bearing overheating, discoloration, and eventual seizure, locking the shaft.

• Causes: Excessive preload, insufficient lubrication, high-speed operation beyond design limit, or bearing contamination.

6. Brinell Indentation

• Manifestation: Permanent indentations on the raceway, causing vibration and noise during rotation.

• Causes: Excessive static load during storage/transport, improper press-fit installation, or impact shock.
