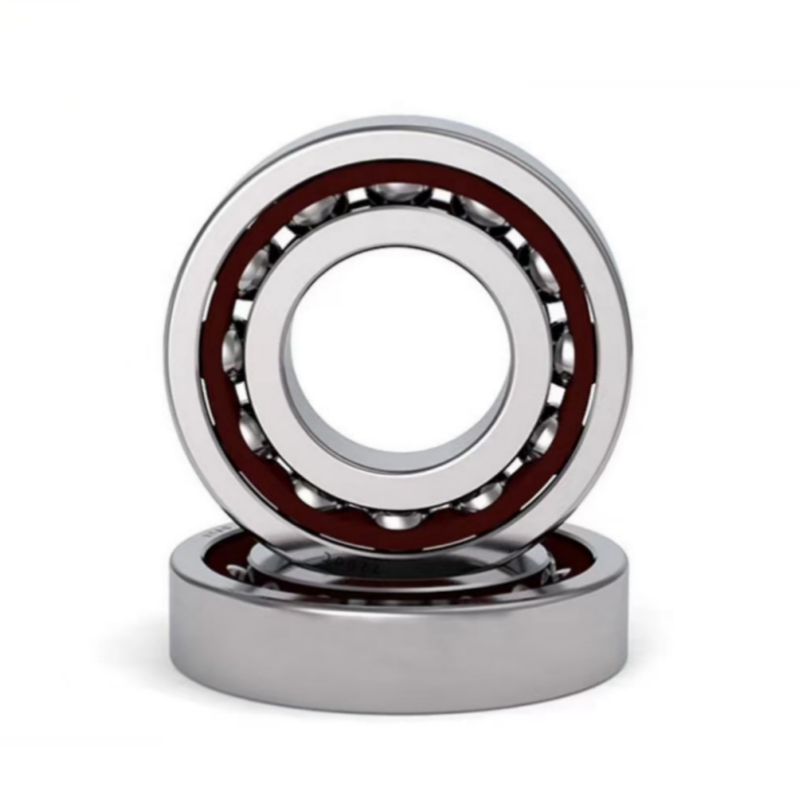

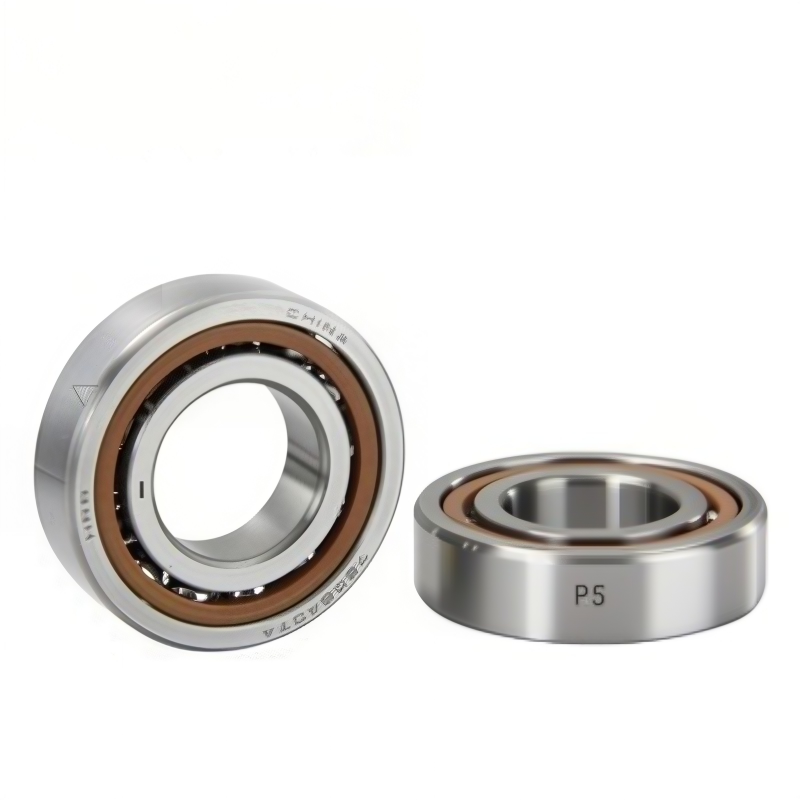

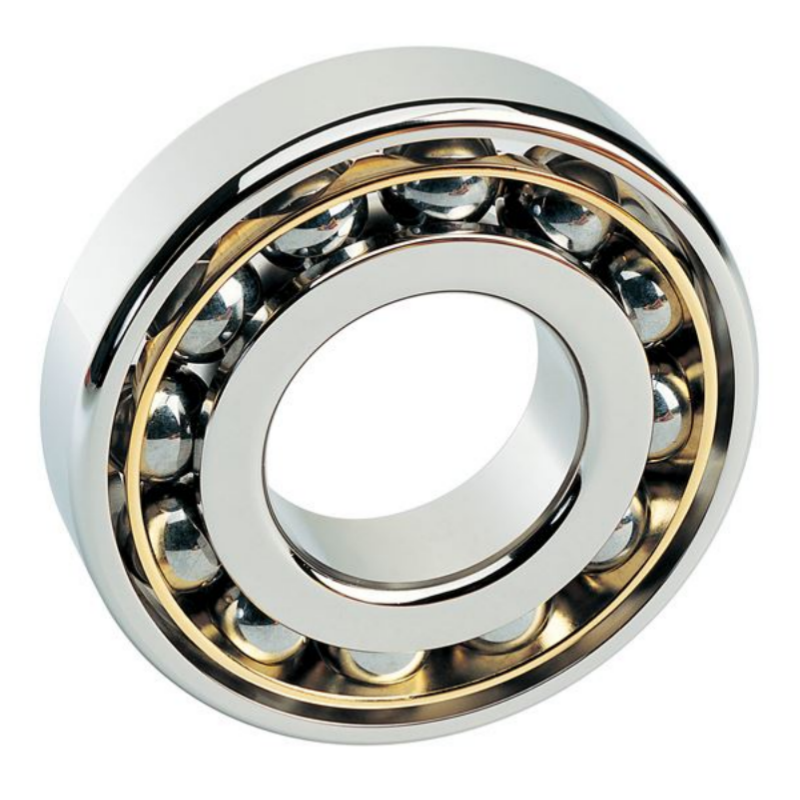

High Speeds Angular Contact Ball Bearing

Core Functions and Advantages

The 7202 bearing is designed to withstand both radial and axial loads simultaneously, with the following key advantages:

High load-bearing capacity: It can simultaneously withstand radial and unidirectional axial loads, with dynamic loads generally ranging from 8.4 kN to 9.5 kN and static loads approximately between 4.45 kN and 4.8 kN. The axial load-bearing capacity is determined by the contact angle, with greater angles (commonly 15°,25°,30°,40°) resulting in enhanced capacity.

Excellent rotational performance: With a high maximum speed, it is ideal for high-speed applications. For instance, the EAO B7202-E-T-P4S model achieves a maximum speed of 40,000 r/min with grease lubrication.

High precision and rigidity: Features excellent rotational accuracy and low noise. The dual-row design (e.g., 7202-B-JP) delivers superior axial rigidity. Precision-grade (e.g., P4) bearings are commonly used in machine tool spindles.

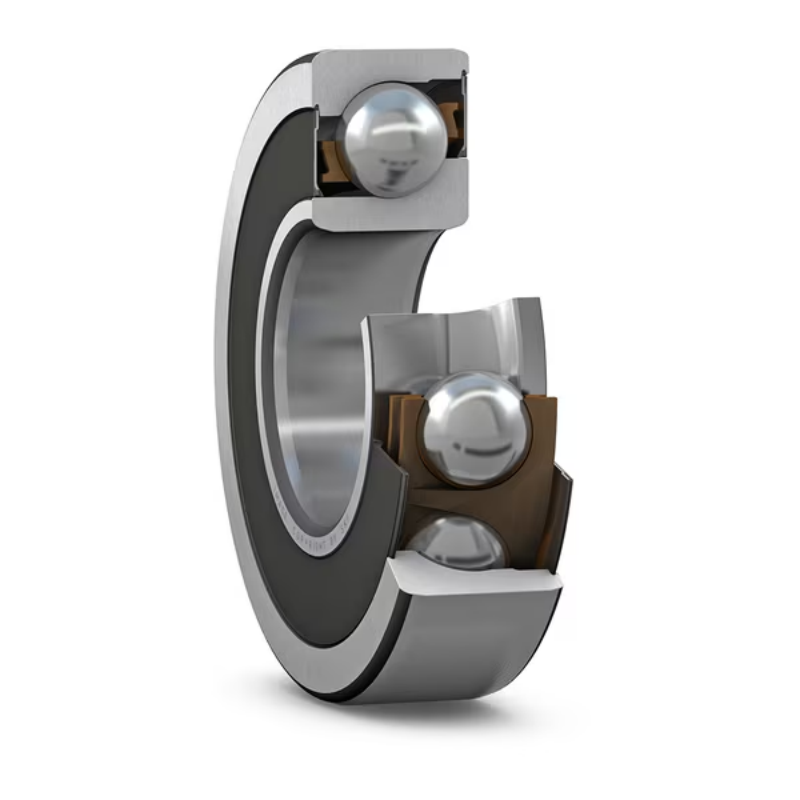

structural design features

Its structural design directly determines its application mode and performance:

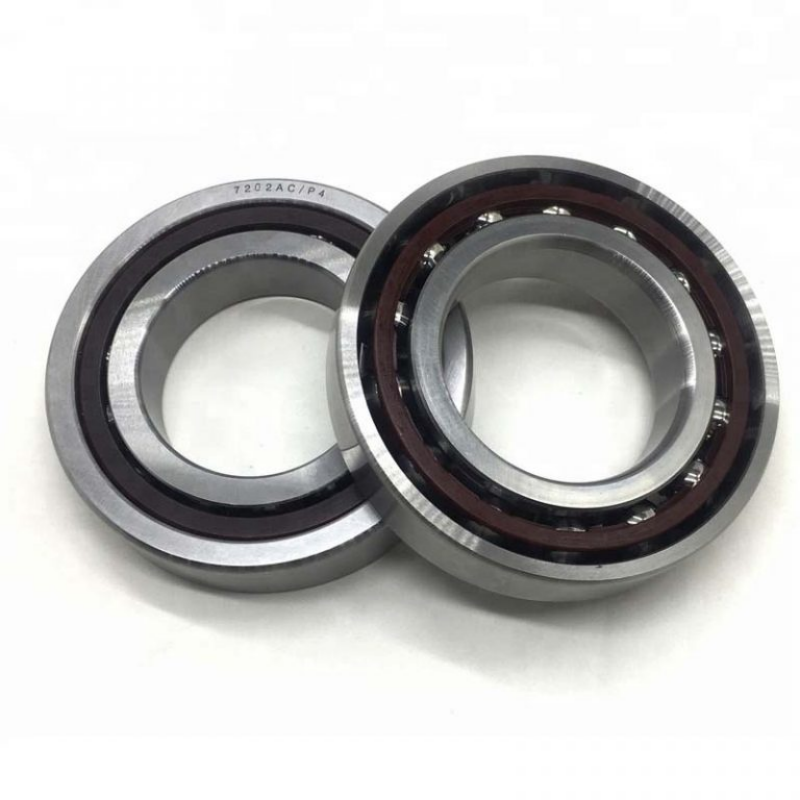

Combination usage: Single-row bearings can only withstand unidirectional axial forces, and radial forces may induce additional axial forces. Therefore, they are typically installed in pairs (face-to-face or back-to-back) for optimal performance.

Structural variants: In addition to the standard single-column design, there are also double-column (capable of withstanding bidirectional axial forces) and sealed designs (with suffixes 2RSR or 2Z, maintenance-free).

Precision engineering: Ultra-precision bearings (e.g., those with P4A/P4S suffixes) demand exceptional internal geometric accuracy. They typically employ solid brass or phenolic resin cages to ensure high-speed stability.

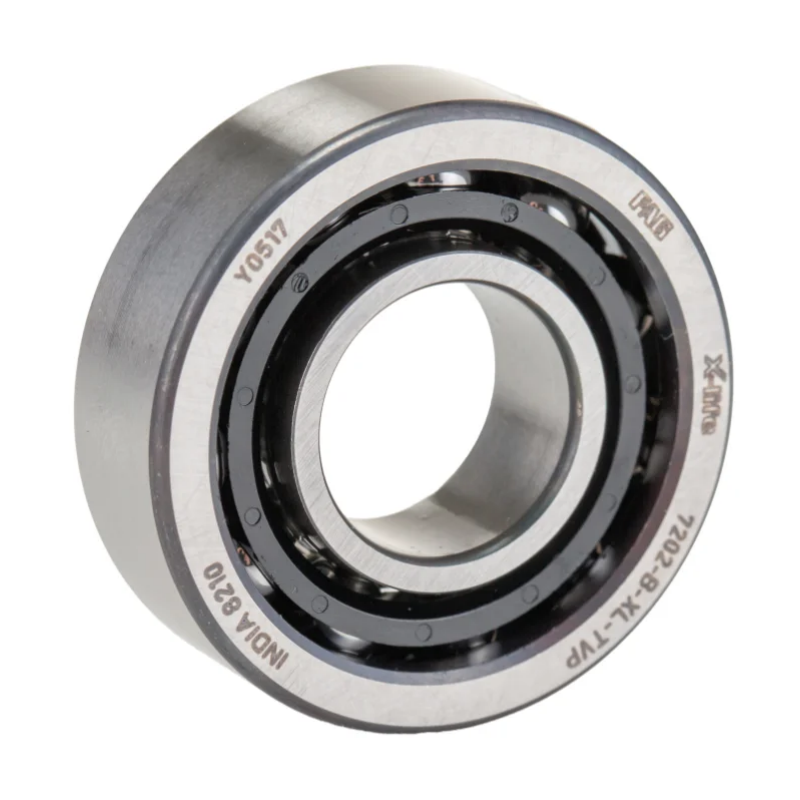

Product Specifications

Adaptability and Maintenance Needs

To ensure bearing longevity and operational stability, the following maintenance points should be noted:

Installation key:

Clean environment: Precision bearing installation must be performed in a dust-free clean room.

Professional tools: Use specialized tools to uniformly tap the inner ring with a socket (never tap the outer ring or seal). Precise matching: When installing in pairs, grind the spacer ring to ensure equal height and parallel alignment.

Lubrication management:

Lubricant selection: Choose the appropriate grease or oil based on operating conditions, with the grease filling amount being approximately 30%-50% of the bearing's internal space.

Regular maintenance: Open-type bearings require periodic grease replenishment or replacement. Sealed bearings (e.g., those with the 2RSR suffix) are generally maintenance-free, though their performance is limited by the grease's lifespan.

Operational monitoring: Monitor operating temperature. If abnormal elevation (e.g., exceeding 80°C) is detected, shut down for inspection. Simultaneously, prevent load from exceeding the rated value.

Cleaning inspection: During maintenance, kerosene or diesel oil may be used for cleaning. After cleaning, inspect for any damage or wear, and determine if there are abnormalities by rotating and listening.

Accuracy grade and material

Precision class: Standard (PN/ABEC-1) is suitable for general machinery; P4/ABEC-7 and higher P4A classes are the preferred choice for high-speed, high-precision equipment such as machine tool spindles, with precision controlled at the micron level.

Maintenance bearing (directly affects high-speed performance):

Nylon retainer (TVP/TVH): The most widely used type, delivering excellent high-speed performance under optimal lubrication conditions, with an upper operating temperature of approximately +120°C.

Huangtong bracket (MPA/M): High-strength, heat-resistant (up to +150°C), ideal for high-vibration applications.

Phenolic resin cage: commonly used in ultra-precision bearings (e.g., P4A grade), lightweight and high-strength, with extremely high allowable rotational speeds.

Ring and Rolling Elements: Most 7202 bearings are manufactured from high-quality chromium steel (GCr15/52100). Some high-performance models (e.g., those with the HC suffix) utilize ceramic rolling elements, which offer advantages such as low density, minimal thermal expansion, and superior high-speed performance.

Lubrication and Sealing

Sealing method:

Open design: No suffix, allows users to freely choose lubrication methods, requires regular maintenance.

Metal dust cover (2Z): Features non-contact sealing for superior dustproofing with minimal friction, ideal for high-speed applications.

Rubber sealing ring (2RSR): A contact-type seal with the highest waterproof and anti-pollution performance, though it generates significant friction and consequently reduces the maximum rotational speed.

Lubricants: Sealed bearings are typically pre-filled with high-quality grease, theoretically enabling "lifelong lubrication" or "maintenance-free operation." Open bearings, however, require grease or oil lubrication (e.g., oil mist or oil-gas lubrication for extremely high rotational speeds) based on operating conditions.

Installation, Alignment and Failure

Installation Guidelines: Direct striking of bearings is strictly prohibited during installation. Apply even force using a dedicated sleeve. For precision bearings, maintain a clean installation environment.

angular sensitivity: Angular misalignment is highly sensitive to angular contact ball bearings, especially single-row and four-point contact types. Tilt of the inner and outer rings significantly increases operational noise, elevates cage stress, and substantially reduces bearing life.

Minimum load: Under high-speed light-load conditions, bearings may experience "slippage" leading to damage. Therefore, the ratio of radial load to rated dynamic load (P/Cr) is typically required to be> 0.01 to ensure proper rolling of the rolling elements. For four-point contact ball bearings, an additional formula (Fa ≥ 1.2 × Fr) is applied to ensure single-point contact and prevent abnormal friction.

Common failure modes mainly include fatigue spalling (material reaching life limit), wear (foreign body entering or poor lubrication), cage damage (impact or high speed), burn (overheating caused by lubrication failure) and so on.

Materials and Heat Treatment: The Foundation of Properties

stock option

7202 bearings are typically fabricated from high-carbon chromium bearing steel (e.g., GCr15). This material, after precision heat treatment, achieves high hardness, strength, and wear resistance. Some high-performance precision bearings also utilize vacuum degassed steel to further enhance material purity and fatigue life.

heat treatment process

Heat treatment is the key to determine the life and dimensional stability of the bearing.

Optimization objective: The P4 precision bearing requires process innovation to achieve stringent standards for ring size accuracy, raceway ripple, and ovality parameters.

Quality control: Strict control of instantaneous high temperatures (up to 1000-1500°C) is required during grinding to avoid surface oxidation, secondary quenching burn, or grinding cracks and other defects.

Precision Machining: Core Manufacturing Process

ring grinding

This is the core process for achieving bearing precision:

Roller race machining: The inner and outer raceways require precision grinding and ultra-precision machining to control the raceway dimensions, geometric accuracy (roundness, taper), waviness, and roughness.

Equipment improvement: For semi-automatic machine tools such as the M250, modern technology has achieved the transformation from operator-dependent control to standardized and programmed control through independent R&D of specialized tooling and numerical control (NC) retrofitting.

Quality enhancement: After process improvement, the dimensional dispersion of roller tracks was significantly reduced, and the assembly rate increased from the original 60%-70% to nearly 100%, markedly improving product consistency and production efficiency.

bearing manufacturing

The material of the cage directly affects the high-speed performance of the bearing:

Stamping Steel Retainer: General Type, Low Cost

Mechanical Machining of Brass Retainer: High Strength, Heat Resistance, Suitable for Vibration-Intense Working Conditions

Polymer retainer (e.g., PEEK): Lightweight and high-strength, with low friction coefficient, suitable for ultra-high-speed operation

Combination Technology: The Soul Process of Precision Bearing

For angular contact ball bearings requiring paired or grouped applications (e.g., in machine tool spindles), assembly techniques are critical to determining final performance.

protrusion control

Definition: Protrusion refers to the relative positional difference between the inner and outer ring end faces of a single bearing under light load. This is the basis for achieving the expected preload after installing paired bearings.

Measurement method: Professional literature indicates that non-load protrusion measurement is the rational approach for manufacturing angular contact ball bearings. A common misconception is to treat loading verification during grinding as protrusion measurement.

Polishing process: By precisely measuring the protrusion amount, the bearing ring end face is finely polished to ensure that the paired bearings have a consistent protrusion amount, thereby guaranteeing uniform preload after installation.

pre-tension matching

By selecting bearings with different protrusion sizes (e.g., universal pairings UL, UM, US), the system can achieve light, medium, or heavy preload to meet the rigidity requirements of various operating conditions.

Quality Control and Inspection

process detection

Online Monitoring: Real-time Monitoring of Dimension and Geometric Accuracy in Grinding Process

Comprehensive verification: Post-assembly testing of rotational flexibility, noise, and vibration

Finished product testing

Precision inspection: The runout (radial and axial) of finished bearings must meet the design grade (e.g., P4 or P4S class).

Dynamic balancing test: For high-speed spindle bearings, dynamic balancing test is required.

Life test: Sampling for durability and reliability testing to verify fatigue life

Achievements in technological innovation

Taking the case of Northwest Bearing as an example, through technological breakthroughs:

Optimizing the outer ring lockage process parameters and standardizing the workpiece positioning operation for solving the problem of angular contact ball bearing machining

Through multiple rounds of tracking and validation, the optimal parameters were determined and widely applied, resulting in a significant improvement in both the product qualification rate and the set compliance rate.
