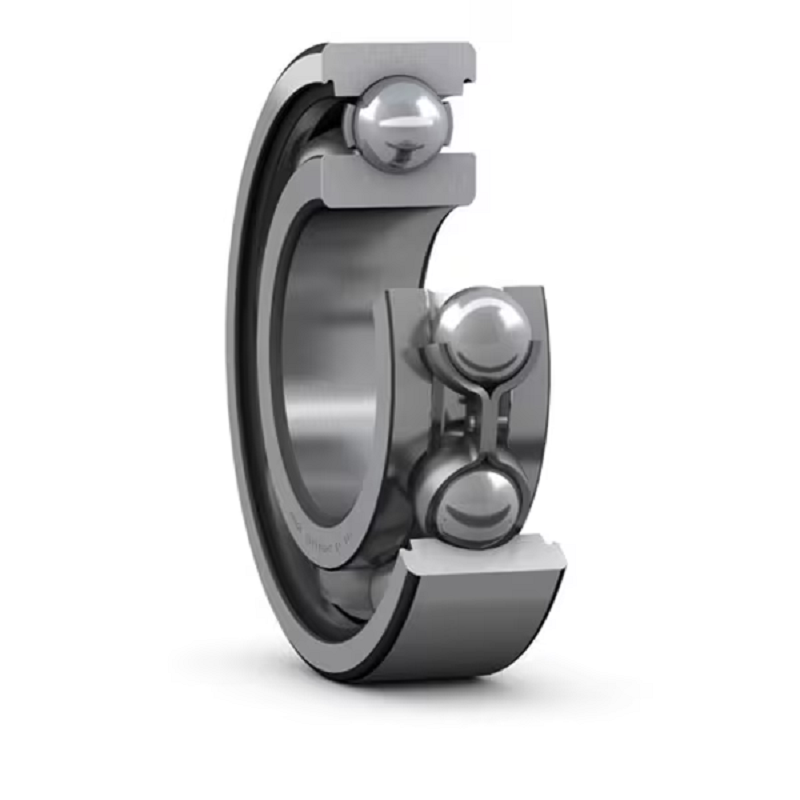

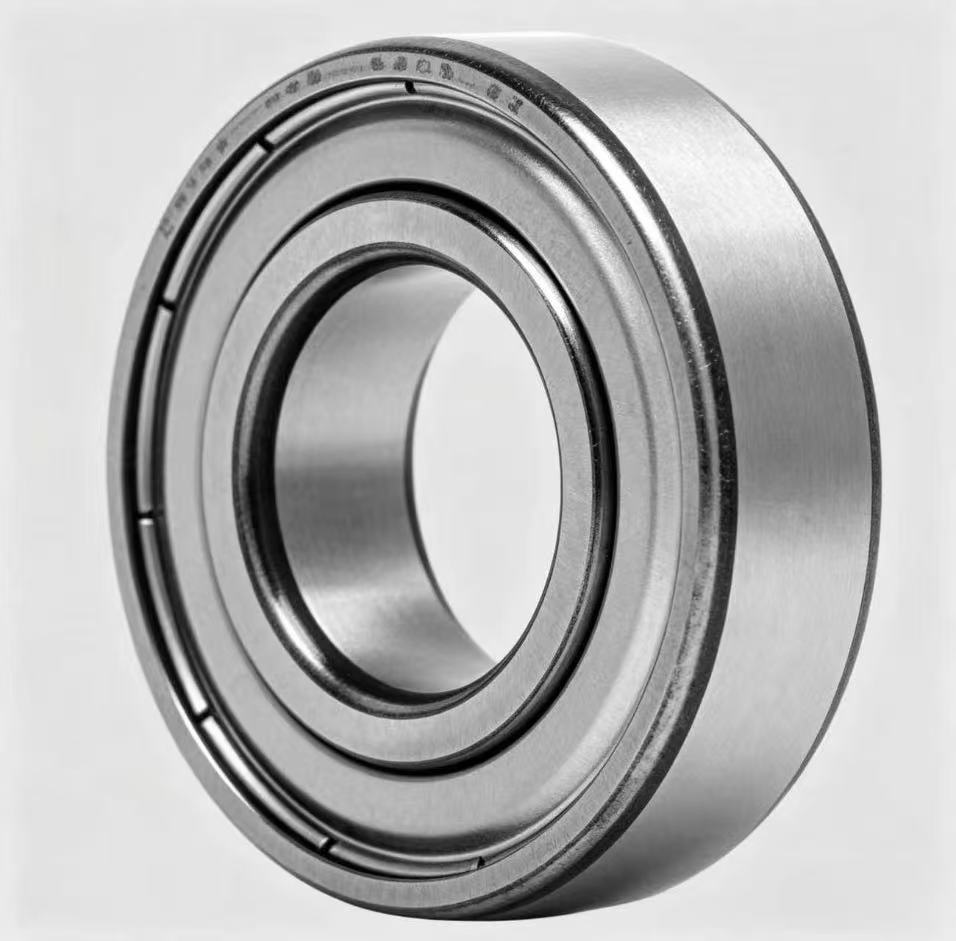

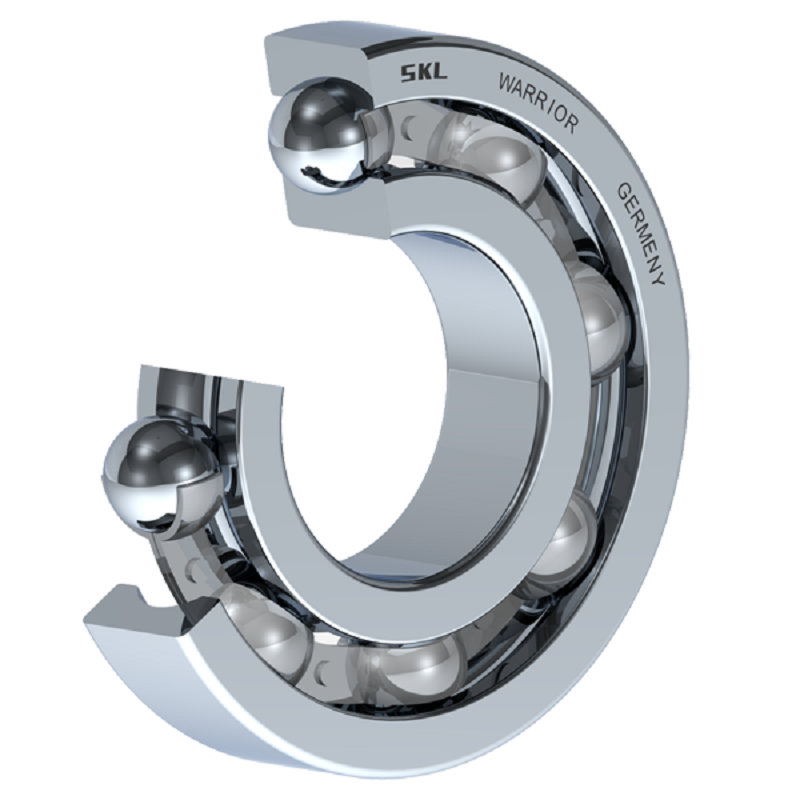

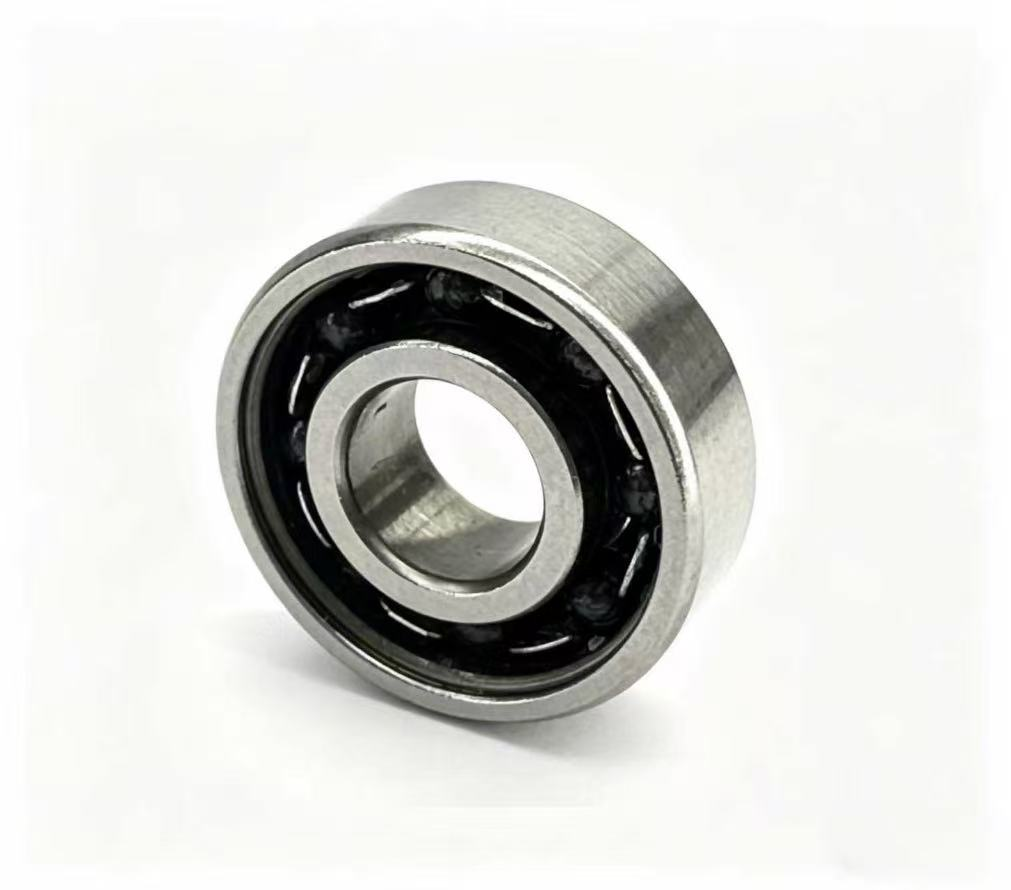

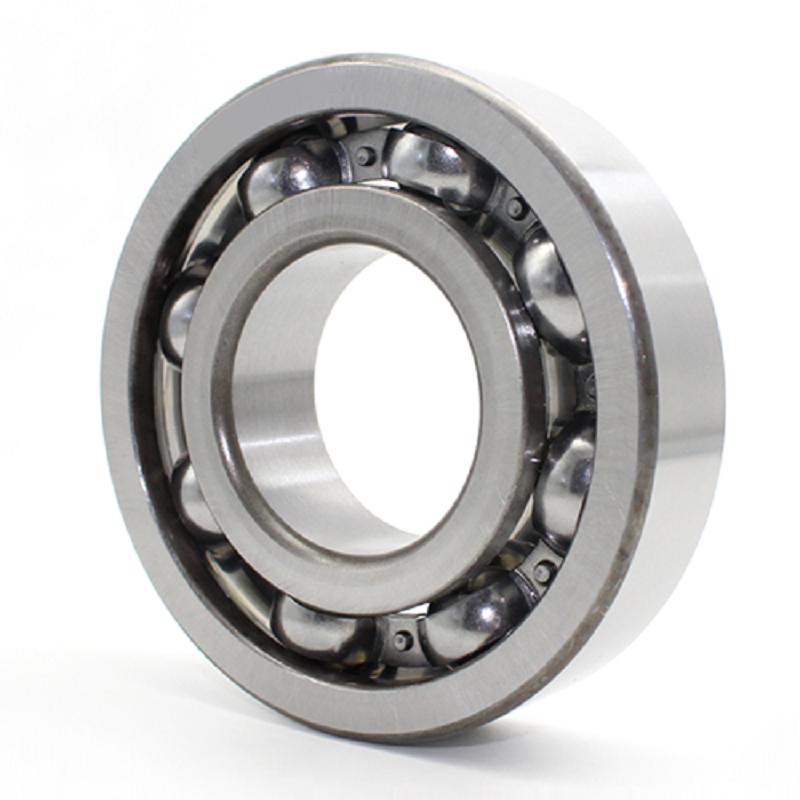

607 Deep Groove Ball Bearing Miniature High Speed Low Noise Precision Bearing for Motors & Instruments

II. Material and Manufacturing Process Characteristics: Ensuring Quality and Performance

The performance and lifespan of the 607 deep groove ball bearing hinge on the selection of materials and manufacturing process. Its material and process design are tailored to the needs of miniature bearings, balancing hardness, wear resistance, and economy. Specifically:

1. Ring and Ball Materials: The mainstream material is high-carbon chromium bearing steel (such as GCr15/SAE 52100). Different brands vary in steel grade and purity. After quenching and low-temperature tempering, this material achieves high and uniform hardness (HRC 58-62), possessing excellent fatigue life, wear resistance, and dimensional stability, effectively extending the bearing's service life and preventing component wear caused by long-term operation. The steel balls are machined with high precision to ensure a perfect fit with the raceway, reducing frictional resistance.

2. Heat Treatment and Precision: The rings and steel balls undergo martensitic quenching and low-temperature tempering, forming a microstructure with uniformly distributed fine carbides on a cryptocrystalline martensite matrix. This is the microscopic basis for its high load-bearing capacity. The common precision grades for 607 bearings are ABEC-1 (corresponding to P0 grade) or ABEC-3 (corresponding to P6 grade). Higher precision versions (such as ABEC-5/7) are used in applications requiring extremely high runout and rotational accuracy. Different brands may have slightly different standards for precision grades; selection should be based on the required transmission precision.

3. Manufacturing Process: Precision grinding is employed to machine the raceways, inner ring, and outer ring with high precision, ensuring dimensional deviations are controlled within a minimal range and improving the bearing's rotational accuracy. The raceway surface is polished to reduce friction between the steel balls and the raceway, lowering operating noise. Seals are made of high-quality rubber or metal, precision stamped and assembled to ensure sealing performance and prevent grease loss and impurity ingress. Furthermore, the production process conforms to ISO standards. While different brands may have variations in process control and testing standards, strict quality control at each stage ensures product consistency.

III. Performance and Mechanical Characteristics: Low Resistance, High Speed, Stable and Reliable

The performance design of the 607 deep groove ball bearing focuses on "low friction, high speed, and stable load bearing," adapting to the high-speed operation requirements of small equipment while balancing stability and economy. Its core performance and mechanical characteristics are as follows:

1. Load Capacity: Radial basic rated dynamic load (Cr) is approximately 2.2 kN, and radial basic rated static load (Cor) is approximately 1.0 kN. These are typical industry reference values; actual measured load parameters may vary slightly between different brands. Axial load capacity is approximately 20%-30% of the radial rated load. The axial load capacity of a deep groove ball bearing is determined by the contact angle (although it is standard zero degrees, a contact angle will form under axial force), making it suitable for low to medium axial load scenarios.

2. Speed Performance: Its limiting speed (grease lubrication) is typically above 20,000 rpm. The actual allowable speed is influenced by the lubrication method, seal type, cage structure, heat dissipation conditions, and load. Different brands exhibit variations in limiting speed due to differences in manufacturing processes and materials. Bearings with nylon cages and open or dust-covered (ZZ/2Z) designs can achieve higher limiting speeds, fully meeting the needs of high-speed operating equipment such as small motors and precision instruments.

3. Friction and Temperature Rise: Extremely low rolling friction coefficient (approximately 0.0015-0.002), low starting and running torque, and low power loss result in relatively low temperature rise, which is beneficial for stable operation in precision or low-power equipment. It also reduces noise and vibration during operation, making it suitable for equipment requiring high quietness.

4. Environmental Adaptability: Wide operating temperature range; standard models can operate normally in environments from -30℃ to 120℃. Upgraded materials allow for more extreme temperature scenarios. Furthermore, some models comply with RoHS and REACH environmental standards, and the materials possess a certain degree of corrosion resistance, making them suitable for humid, mildly corrosive industrial environments and household applications.

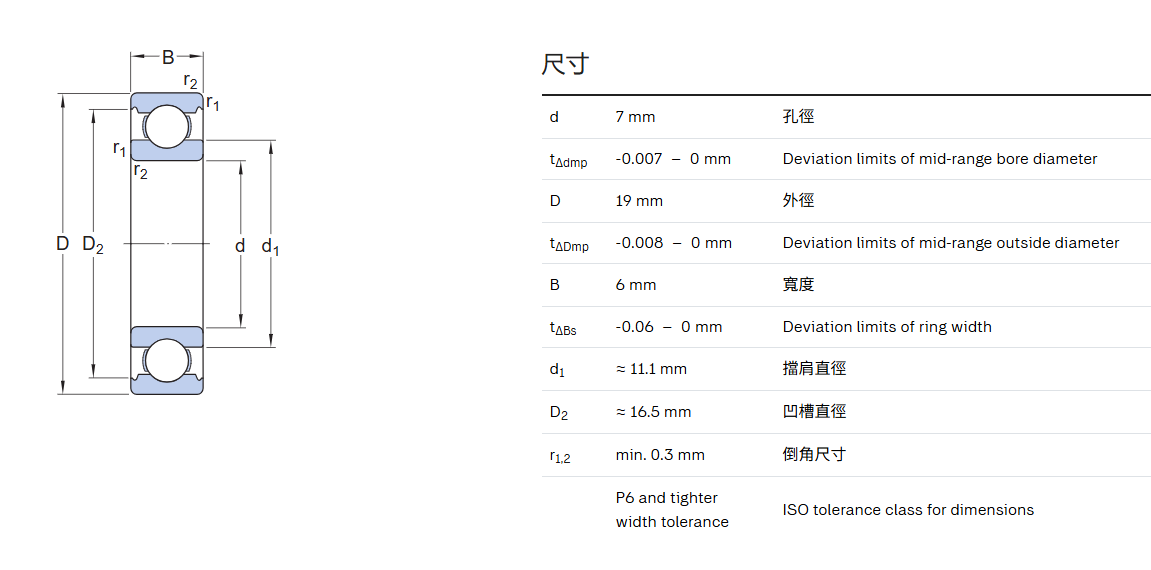

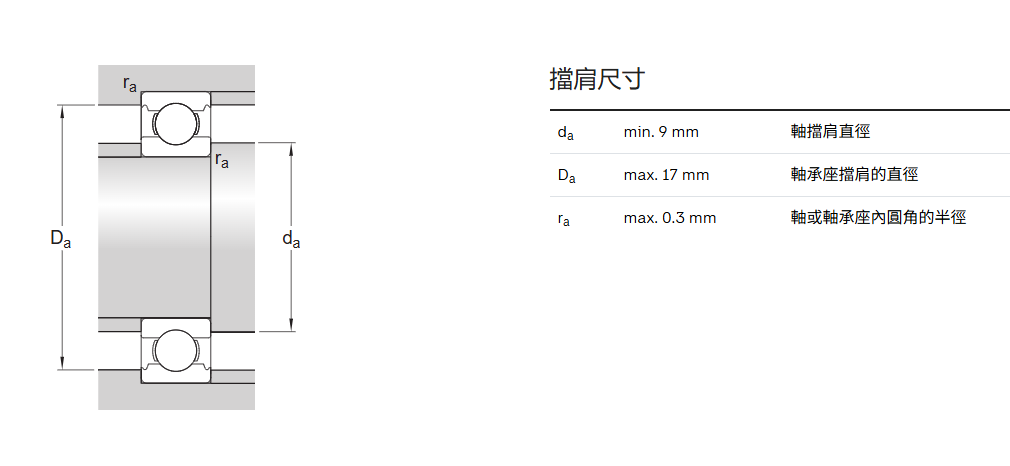

(SKF 607 Technical Specifications)

IV. Application Scenarios and Adaptability: Versatile Across Multiple Fields, Precisely Matching Needs

The 607 deep groove ball bearing, with its compact size, low resistance, high speed, and low maintenance, is suitable for a variety of small equipment scenarios, covering multiple fields such as industry, household use, and precision instruments. Specific application scenarios and adaptability are as follows, clearly demonstrating its application value:

1. Typical Application Areas: Micro-motors are its core application scenario, such as ducted motors for drones, small cooling fan motors, and model motors; in the field of precision instruments, it is suitable for rotating parts of optical instruments and drive shafts of measuring equipment; in the field of office automation equipment, it is suitable for paper feed rollers of printers and scanners, and laser scanning heads; in the field of household appliances, it can be used for small rotor supports in high-speed blenders, vacuum cleaners, and power tools; in the field of entertainment equipment, it is widely used in wheel bearings for scooters and roller skates.

2. Adaptability to Operating Conditions: Advantages include simple structure, easy installation, low maintenance requirements (especially for sealed types), good high-speed performance, and economical price, meeting the needs of most light-load, high-speed operating scenarios. Limitations include poor resistance to heavy impact loads, sensitivity to the form and position tolerances and stiffness of the shaft and bearing housing, and unsuitability for applications with purely large axial loads or combined loads with excessively large axial components.

V. Reliability, Maintenance, and Failure Modes: Extending Lifespan and Avoiding Failures The long-term stable operation of the 607 deep groove ball bearing relies on proper maintenance and avoidance of failure modes. Specific points are as follows:

1. Lubrication and Maintenance: Standard factory-filled grease (such as general-purpose lithium-based grease) allows the sealed 607 bearing to achieve "lifetime lubrication" under clean environments and moderate operating conditions, requiring no maintenance. Under harsh or continuous operating conditions, the grease needs to be replaced or replenished according to its lifespan to ensure lubrication and prevent wear.

2. Common Failure Modes and Avoidance:

Fatigue Spalling: Under cyclic loads exceeding the rated lifespan, pitting or spalling occurs on the raceway or ball surface. This is a normal end-of-life mode. Appropriate selection based on operating conditions is necessary to avoid overloading.

Contamination Wear: Dust and particulate matter intrusion leads to abrasive wear, increasing clearance, noise, and vibration. Appropriate seal type should be selected based on the environment, and impurities around the equipment should be cleaned regularly.

Lubrication failure: Aging, loss, or improper selection of grease can lead to direct metal-to-metal contact, causing high temperatures and adhesive wear (seizing). It is necessary to select grease suitable for the operating conditions and regularly check the lubrication status.

Improper installation: Incorrect hammering during installation can cause deformation or scratches on the bearing rings, accelerating failure under eccentric loads. Avoid violent hammering during installation and ensure the coaxiality of the shaft and bearing housing meets requirements.
