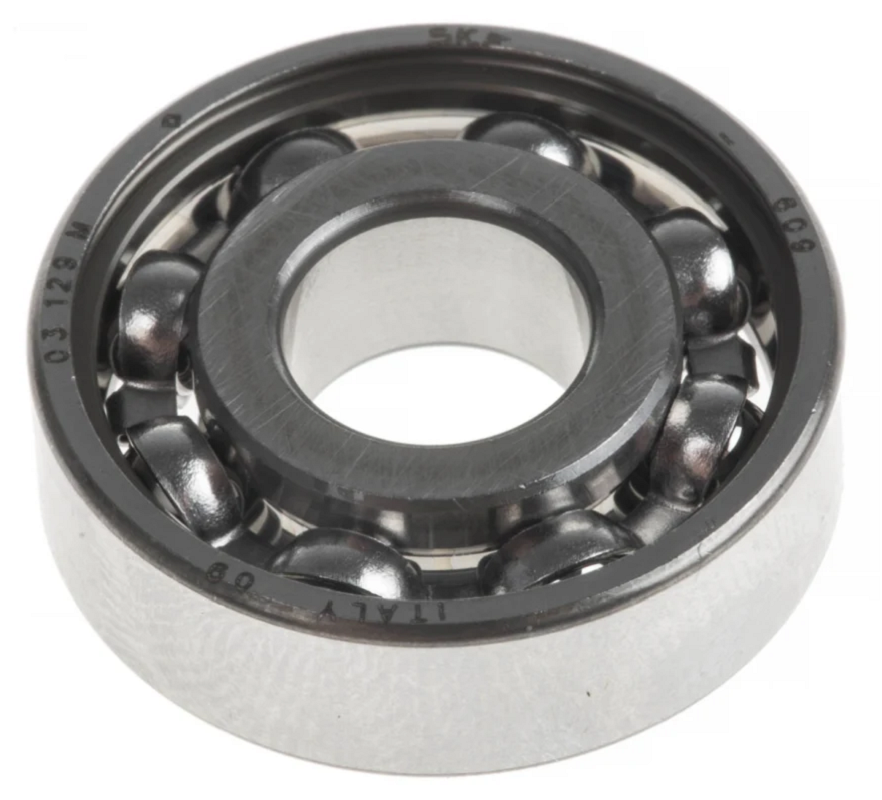

The core parameters of the 609 deep groove ball bearing establish its fundamental performance boundaries. All values adhere to industry-standard specifications, although slight variations exist between different brands in the details.
• Core Dimensions: Inner diameter 9mm, outer diameter 24mm, width 7mm. Its compact size adapts to the installation space requirements of miniaturized equipment, serving as a core benchmark for size compatibility in micro-transmission structures.
• Load Characteristics: Basic rated dynamic load approximately 3.9kN, basic rated static load approximately 1.66kN. It can stably withstand radial loads and bidirectional axial loads, suitable for light to medium load transmission scenarios.
• Speed Parameters: Grease lubrication limiting speed approximately 43,000 r/min, oil lubrication limiting speed up to 70,000 r/min. This high speed adaptability makes it a preferred model for high-speed micro-motors, fans, and other similar equipment.
• Accuracy and Clearance: Common accuracy grades include standard, P6, and P5. Clearance is based on CN (standard group), and C2 (small clearance) and C3 (large clearance) versions can be customized. The accuracy parameters of different brands vary, which directly affects the stability of equipment operation.
Structural Design Characteristics
The structural design of the 609 bearing is the core support for its adaptability and practicality. The overall structure is simple and adaptable to various scenarios.

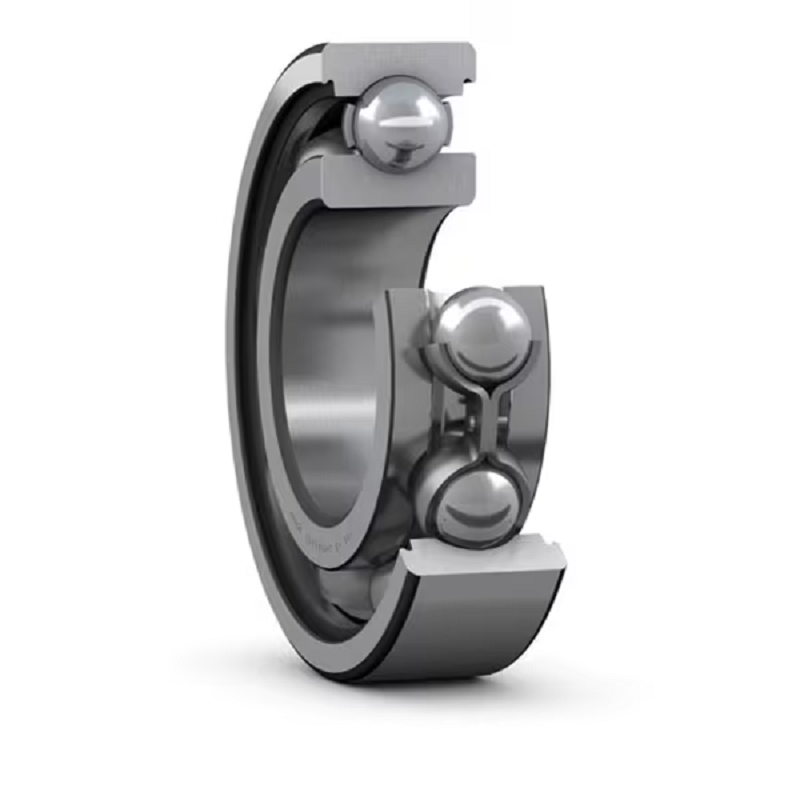

• Core Structure: It adopts a single-row deep groove raceway design. The fit between the raceway and the steel balls has been precisely optimized, enabling simultaneous radial load bearing and axial load balance. No additional axial limiting structure is required, simplifying the overall equipment design.

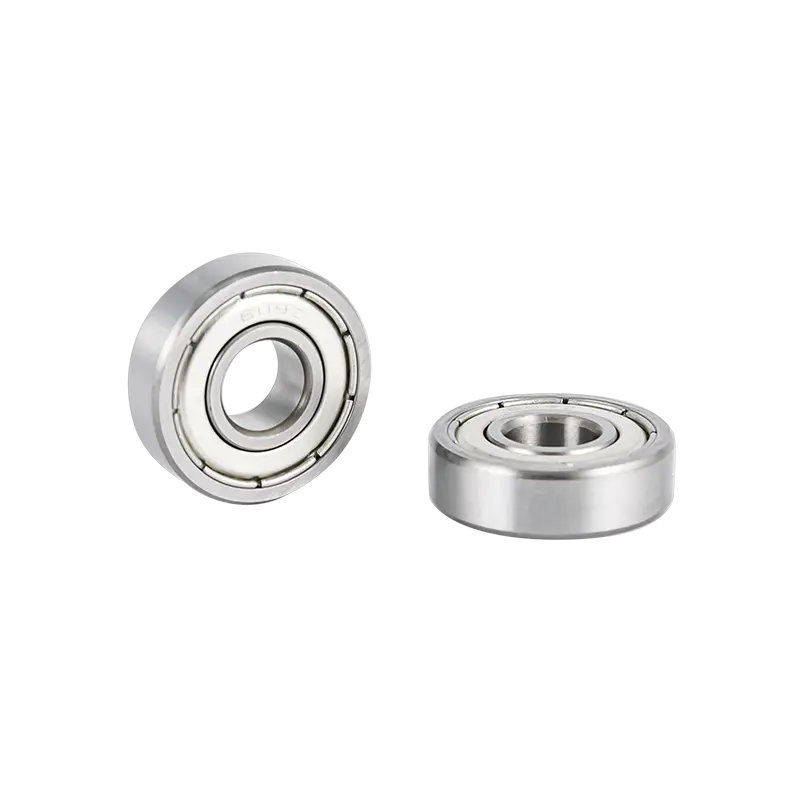

• Sealing Structure: Mainstream types include open type, ZZ (iron cover dustproof seal), and 2RS (rubber double-sided seal). The open type is suitable for dust-free and low-protection scenarios; the ZZ type achieves basic dust protection through a metal dust cover, with lower cost; the 2RS type uses nitrile rubber seals, combining dustproof, waterproof, and oil-proof functions, suitable for humid and dusty environments. Different brands vary in the purity of the seal material and the precision of the lip design, affecting the protection life.

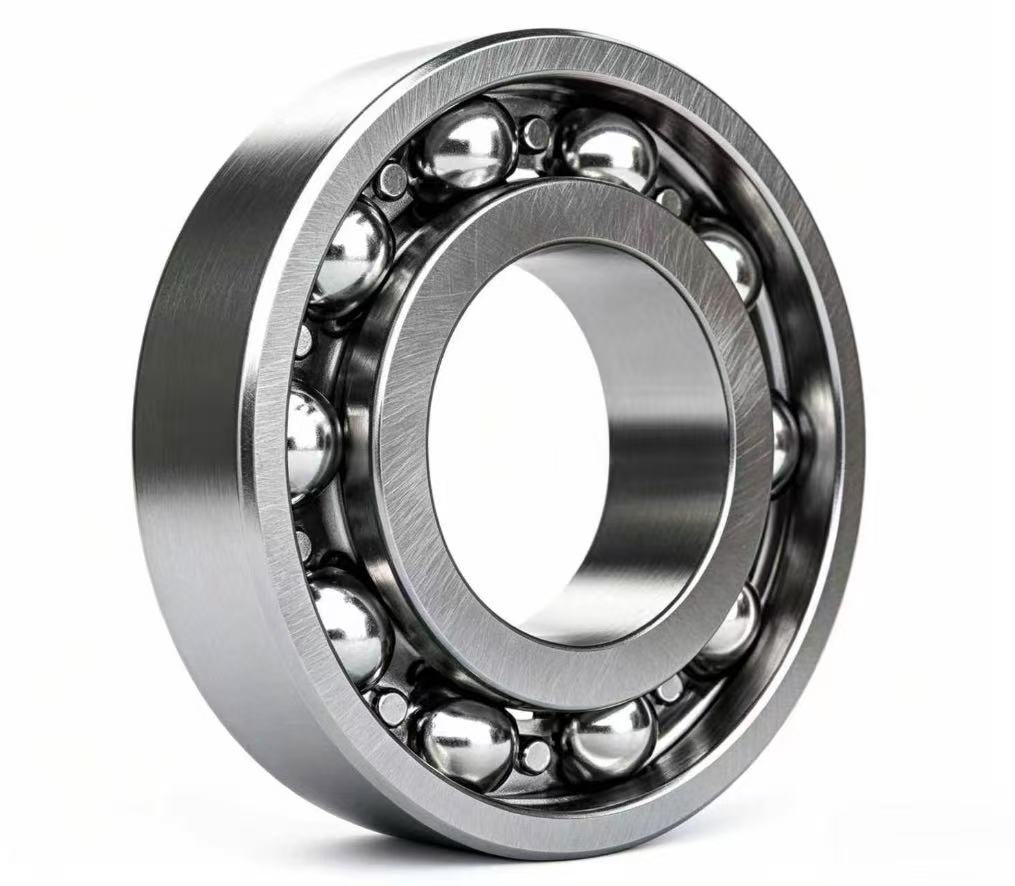

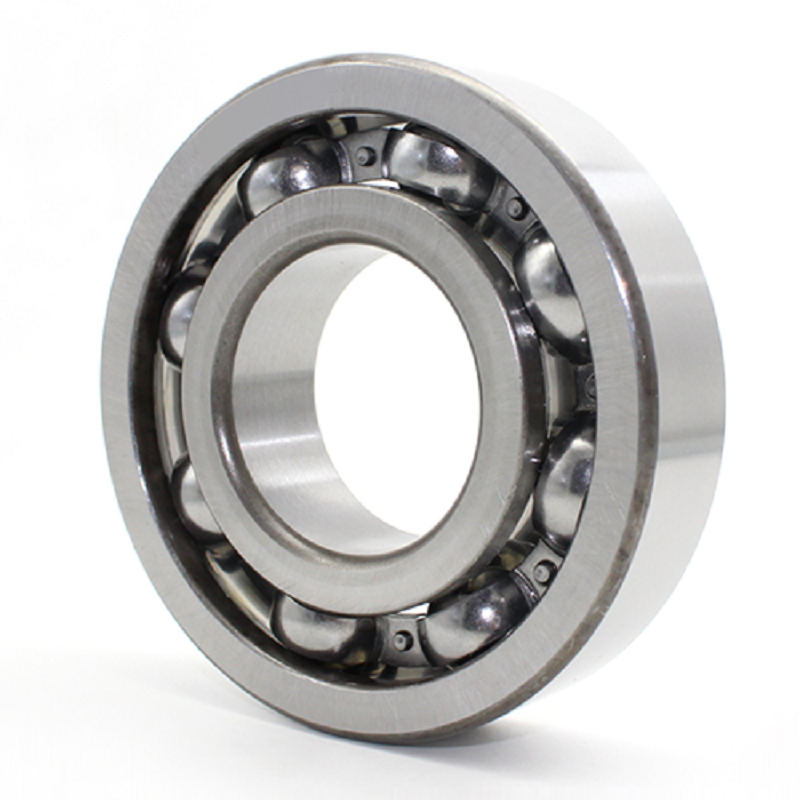

• Cage Design: The mainstream configuration is a stamped steel cage, while some high-end versions use nylon or brass cages. Stamped steel cages are low in cost and high in strength, making them suitable for conventional working conditions; nylon cages have a lower coefficient of friction, making them suitable for high-speed, low-noise scenarios; while brass cages are resistant to high temperatures and wear, making them suitable for special high-temperature working conditions.

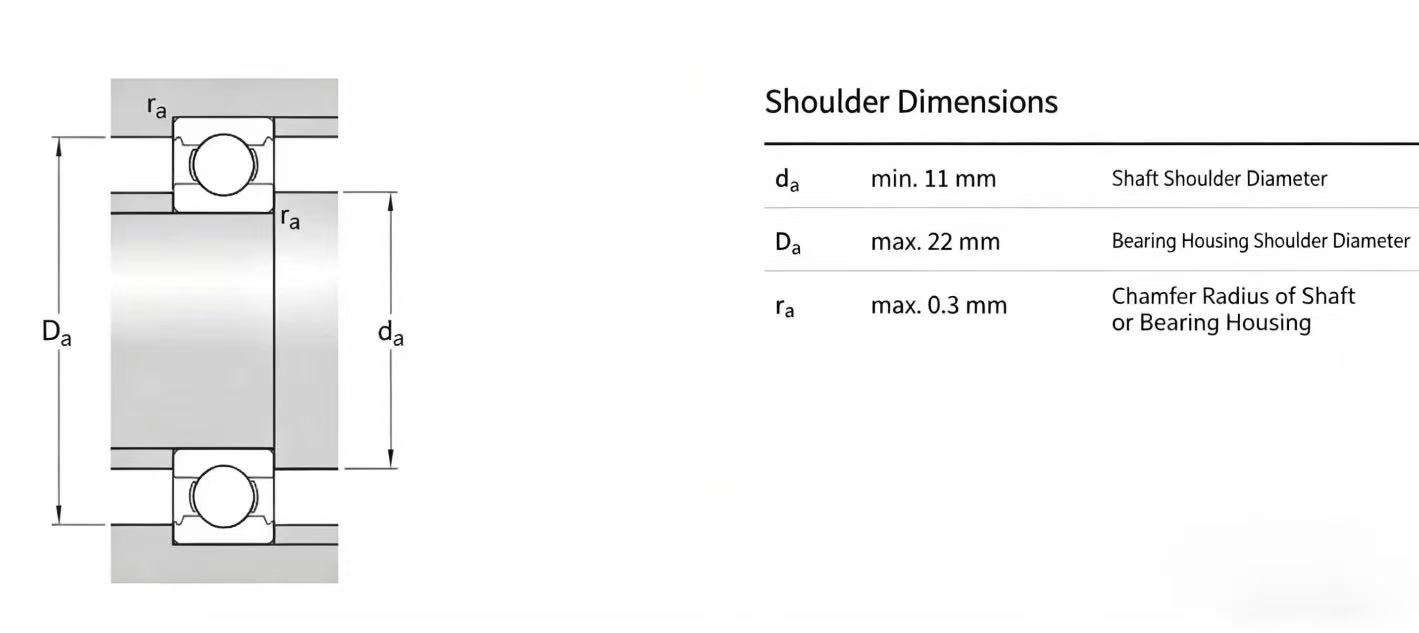

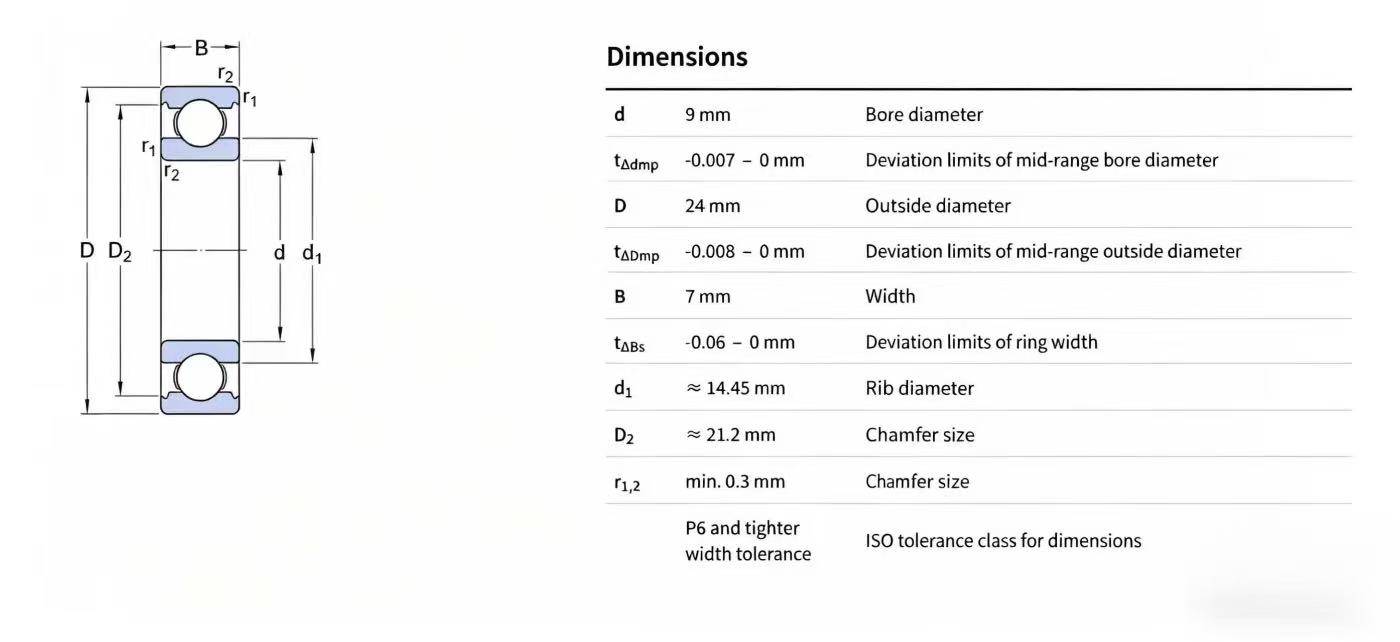

(This image shows the technical specifications of SKF 609; slight variations may occur between different brands.)
From actual operation, the performance characteristics of the 609 bearing are mainly reflected in its smooth operation, noise control, lifespan stability, and anti-interference capability.
• Smooth Operation: The precise fit between the deep groove raceway and the steel balls, combined with a reasonable clearance design, results in low operating resistance and strong rotational stability within the rated speed range. Differences in raceway precision and steel ball roundness between different brands directly lead to differences in smooth operation; high-end brands exhibit more pronounced smoothness at low speeds.
• Noise and Vibration Control: The standard version has a low to medium noise level, meeting the needs of general applications such as home appliances and toys; the high-precision version (P5 grade), through optimized raceway processing, can control noise levels to an even lower range, suitable for applications requiring high quietness, such as precision gimbals and laboratory instruments. Vibration amplitude is closely related to clearance matching and assembly precision; vibration control standards vary between brands.
• Lifespan Stability: Within the rated load and speed range, the lifespan can reach several thousand hours under normal operating conditions. The core influencing factors are materials and operating conditions. The lifespan performance varies significantly among different brands. Leading international brands have a greater advantage in fatigue life, while high-quality domestic brands strike a balance between cost-effectiveness and standard lifespan.
• Anti-interference capability: Strong adaptability to dust, humidity, and slight temperature changes. The 2RS sealed version effectively resists moisture and dust intrusion, preventing steel ball wear or raceway corrosion caused by external impurities, and is suitable for various operating environments.
Material selection and processing technology are the fundamental factors determining the core performance of 609 bearings. Differences in material formulation, processing precision, and heat treatment processes among different brands are key to performance stratification.
*Core Materials
• Rings and Steel Balls:The mainstream material is high-carbon chromium bearing steel GCr15. This material has high hardness, strong wear resistance, and excellent fatigue resistance, making it a core material for miniature bearings. In some special applications (such as corrosion resistance requirements), stainless steel 440C or 304 is used, sacrificing some wear resistance for corrosion resistance.
• Seals:ZZ type uses cold-rolled steel plate; 2RS type uses NBR nitrile rubber (standard) and FKM fluororubber (high-temperature applications). The aging resistance and tear resistance of the rubber material directly affect the seal life.
• Cage:Stamped steel cages use high-quality cold-rolled steel; nylon cages use modified nylon material; brass cages use brass alloy. The strength, coefficient of friction, and temperature resistance of different materials vary significantly.
*Manufacturing Process
• Raceway Machining: Multiple processes including forging, turning, heat treatment, grinding, and ultra-precision machining are involved. The ultra-precision machining of the raceway directly affects the smoothness of operation and noise levels. High-end brands control the ultra-precision machining accuracy error to the micron level.
• Steel Ball Machining: High-precision steel balls are used, with strict control over roundness and diameter differences. The higher the grade of the steel ball, the stronger its rotational stability and wear resistance.
• Heat Treatment Process: The quenching heat treatment temperature, time, and cooling method of the raceway and steel ball determine the material's hardness and fatigue resistance. Differences in the stability of heat treatment processes among different brands lead to variations in product lifespan and performance consistency.
Based on its structural and performance characteristics, the 609 deep groove ball bearing is suitable for various micro-transmission applications, with different application scenarios having different characteristic requirements.
• Precision Instruments: Suitable for micro-transmission components in laboratory precision instruments and testing equipment. Core requirements are low noise, high stability, and high precision (P5 grade), with extremely high demands on vibration amplitude and smooth operation.
• Consumer Electronics: Used in small devices such as micro-motors, fans, Bluetooth headset charging cases, and smart bracelets. Core requirements are compact size, low power consumption, and long lifespan, adapting to the cost balance requirements of mass production.
• Model Aircraft and Toys: A core bearing component in model airplanes, drones, and children's toy cars. Core requirements are high-speed adaptability, impact resistance, and lightweight. The cost-effectiveness of different brands is a key consideration in this field.
•Office Equipment: Suitable for micro-transmission structures in equipment such as printers, scanners, and shredders. Core requirements are wear resistance, long lifespan, and low noise, adapting to the long-term continuous operation conditions of these devices.
• Industrial support: Used for auxiliary transmission in small textile machinery and precision conveying equipment. The core requirements are temperature resistance, dust resistance, and stability. In some scenarios, a customized C3 large clearance version is required to adapt to thermal expansion conditions.
Deep groove ball bearings (609) from different brands exhibit varying degrees of difference in core parameter consistency, performance stability, material quality, and machining precision. These differences are primarily reflected in the following four core dimensions:
1. Precision and Performance Consistency: International top-tier brands (such as SKF and NSK) offer P5-grade products with minimal fluctuations in precision parameters. Their raceway precision and ball grade are strictly controlled, resulting in noise and vibration levels at high speeds far below the industry average. Domestic top-tier brands (such as HRB and ZWZ) offer standard-grade and P6-grade products that meet general operating conditions, but their parameter consistency is slightly lower than international brands. Lesser-known brands often have issues with inflated precision parameters and excessive machining errors, which can lead to problems such as malfunctions and shortened lifespan with prolonged use.
2. Material and Craftsmanship Quality: International brands generally use high-purity GCr15 bearing steel, which boasts high purity, low impurities, and strong heat treatment stability, resulting in a fatigue life 2-3 times that of high-quality domestic products. High-quality domestic brands approach international standards in material purity, with continuously optimized heat treatment processes, meeting long-term use requirements in low-to-medium load scenarios. Inferior brands often use low-purity steel with rough heat treatment processes, leading to corrosion and premature wear.
3. Seal and Cage Configuration: International brands use customized rubber seals with high lip fit precision, providing a protection life exceeding 10,000 hours. High-quality domestic brands use seals suitable for standard applications, with a protection life of approximately 5,000-8,000 hours. Inferior brands use inferior rubber seals, prone to aging, cracking, and seal failure. Regarding cage configuration, international brands can customize nylon or brass cages according to requirements, while domestic brands primarily use stamped steel cages, with nylon cages only offered as an option in high-end versions.
4. Cost and Applicable Scenarios: International brand products are 3-10 times more expensive than high-quality domestic brands, and are primarily suited for high-end scenarios requiring precision, high speed, and long lifespan; high-quality domestic brands have moderate prices and are suitable for general scenarios requiring mass production, offering excellent value for money; generic brands have the lowest prices and are only suitable for temporary use and low-requirement non-core scenarios, resulting in higher long-term costs.
In conclusion, the 609 deep groove ball bearing, as a classic model of miniature bearing, revolves around the core characteristics of "compact fit, high speed, light load, and easy installation." Its performance is determined by basic parameters, structural design, and materials and processes. Differences between brands are mainly reflected in precision, materials, processes, and cost. In actual selection and use, it is necessary to rationally choose the appropriate brand and version based on the specific application scenario, equipment operating conditions, budget, and service life requirements to achieve a balance between performance and cost.
