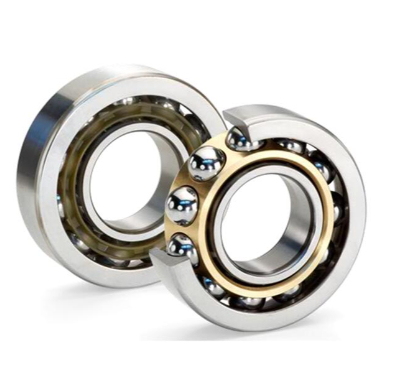

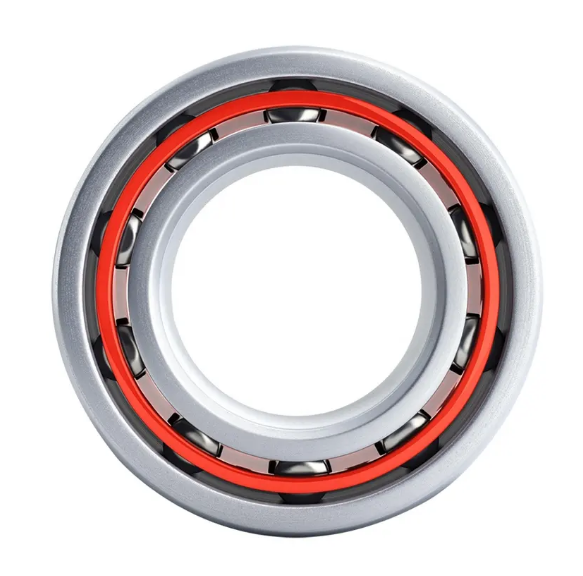

Single Row Angular Contact Ball Bearing Industrial Transmission Bearing
Industrial Single Row Angular Contact Ball Bearing can withstand combined radial and axial loads, widely used in machine tools, pumps, compressors and other industrial equipment. Stable performance, high precision and long service life.
High-quality bearing steel GCr15
ISO Standard, ABEC precision grades
Barreled, bagged, boxed, palletized or as customers' requirement
Supports radial load plus one-way axial load; paired mounting for bidirectional axial load.
Various Contact Angles
C 15°, AC 25°, B 40° optional for different load demands.
Excellent High Speed Performance
Optimized structure for stable high-speed running.
Multiple Cage Choices
Brass cage / PA66 nylon cage for different working conditions.
Diverse Structure Types
Open type and 2RS sealed type for dustproof & lubrication demands.
Multiple Precision Levels
Available P0, P6, P5, P4 precision grades.
Applications
Single Row Angular Contact Ball Bearings are engineered to withstand combined radial and unidirectional axial loads, ideal for high-speed rotating equipment requiring precision and rigidity. Widely adopted across multiple industrial sectors:
· Machine Tool Industry
CNC machining centers, lathes, milling machines, grinding spindles, ball screw support and rotary indexing tables.
· Pumps & Compressors
Water pumps, hydraulic pumps, air compressors, screw refrigeration compressors and vacuum pump rotating shafts.
· Power Transmission Equipment
High-speed electric motors, generators, gearboxes, reducers and transmission assemblies.
· Automotive Industry
Automotive transmissions, drive shafts, wheel hubs, steering systems and new energy vehicle drivetrain components.
· Industrial Automation & Robotics
Robotic articulated joints, automated rotary platforms and precision motion equipment.
· Renewable Energy
Wind turbine auxiliary shafts, small hydroelectric generator rotating systems.
· General Machinery & Other Fields
Centrifuges, textile machinery, printing machinery, construction machinery and aerospace auxiliary power units.
FAQ
Q1: What loads can single row angular contact ball bearings bear?
A: They withstand combined radial load and one-way axial load. To bear bidirectional axial force, two or more bearings need to be installed in paired arrangement (DB/DF/DT).
Q2: Can angular contact ball bearings work at high speed?
A: Yes. Optimized internal structure enables high-speed operation. Open type bearings generally achieve higher limiting speed than sealed 2RS versions.
Q4: What’s the difference between brass cage and nylon (PA66) cage?
A: Brass cage (M) adapts to high temperature, high speed and harsh working conditions.
Nylon PA66 cage features low noise, good shock absorption, fit for normal temperature general machinery.
Q5: Are sealed angular contact bearings reusable after disassembly?
A: Not recommended. Sealed models are pre-filled with grease. Disassembly will damage the sealing structure and lead to grease leakage, affecting service life.
